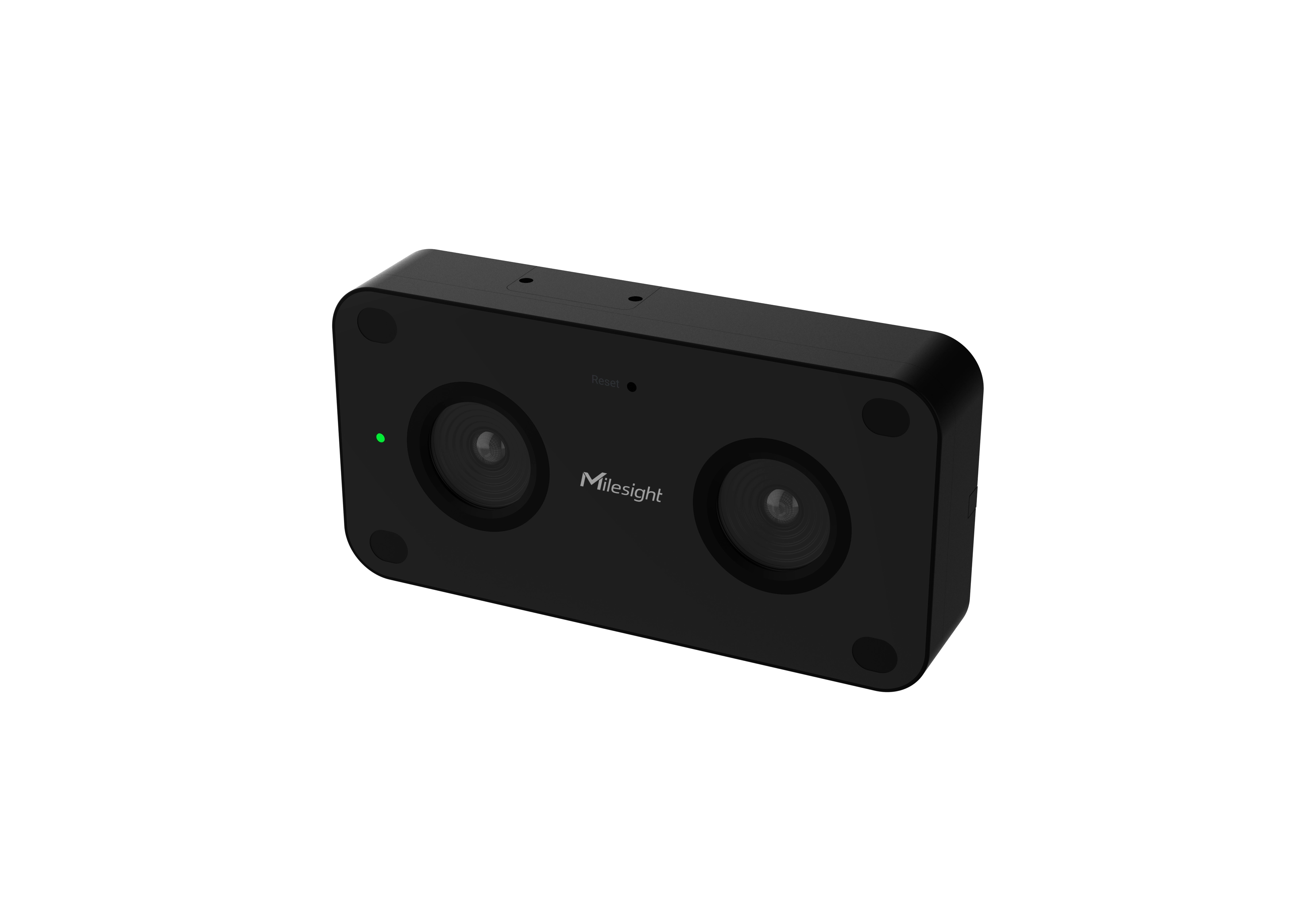

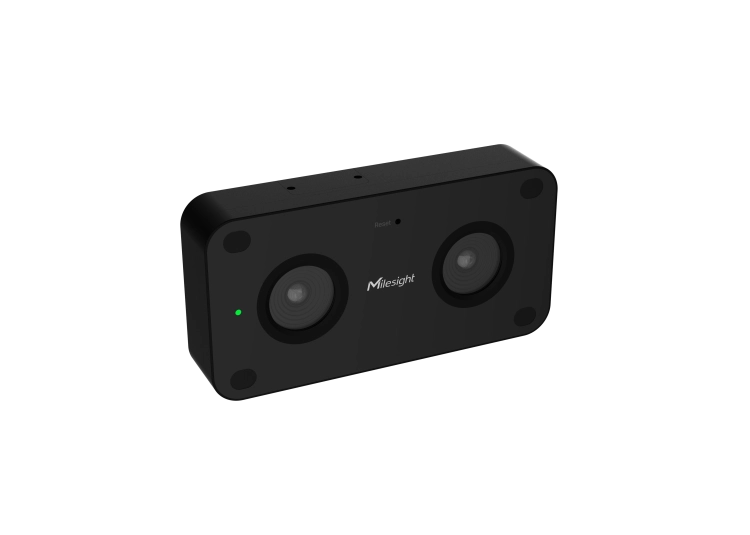

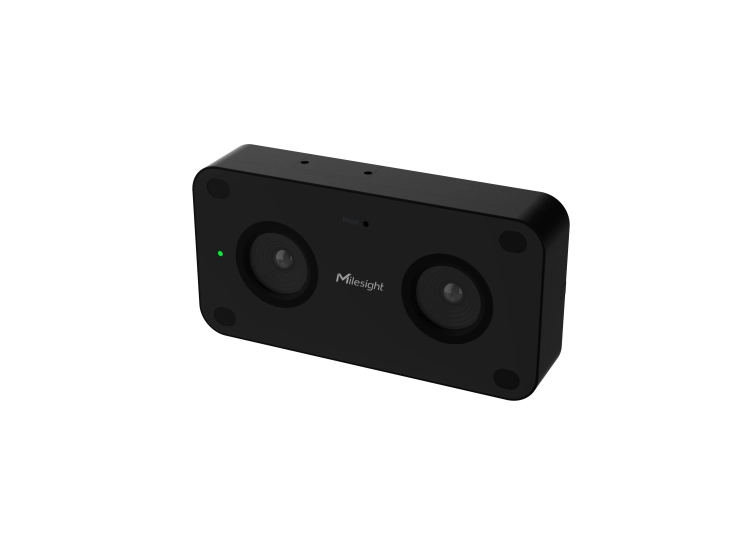

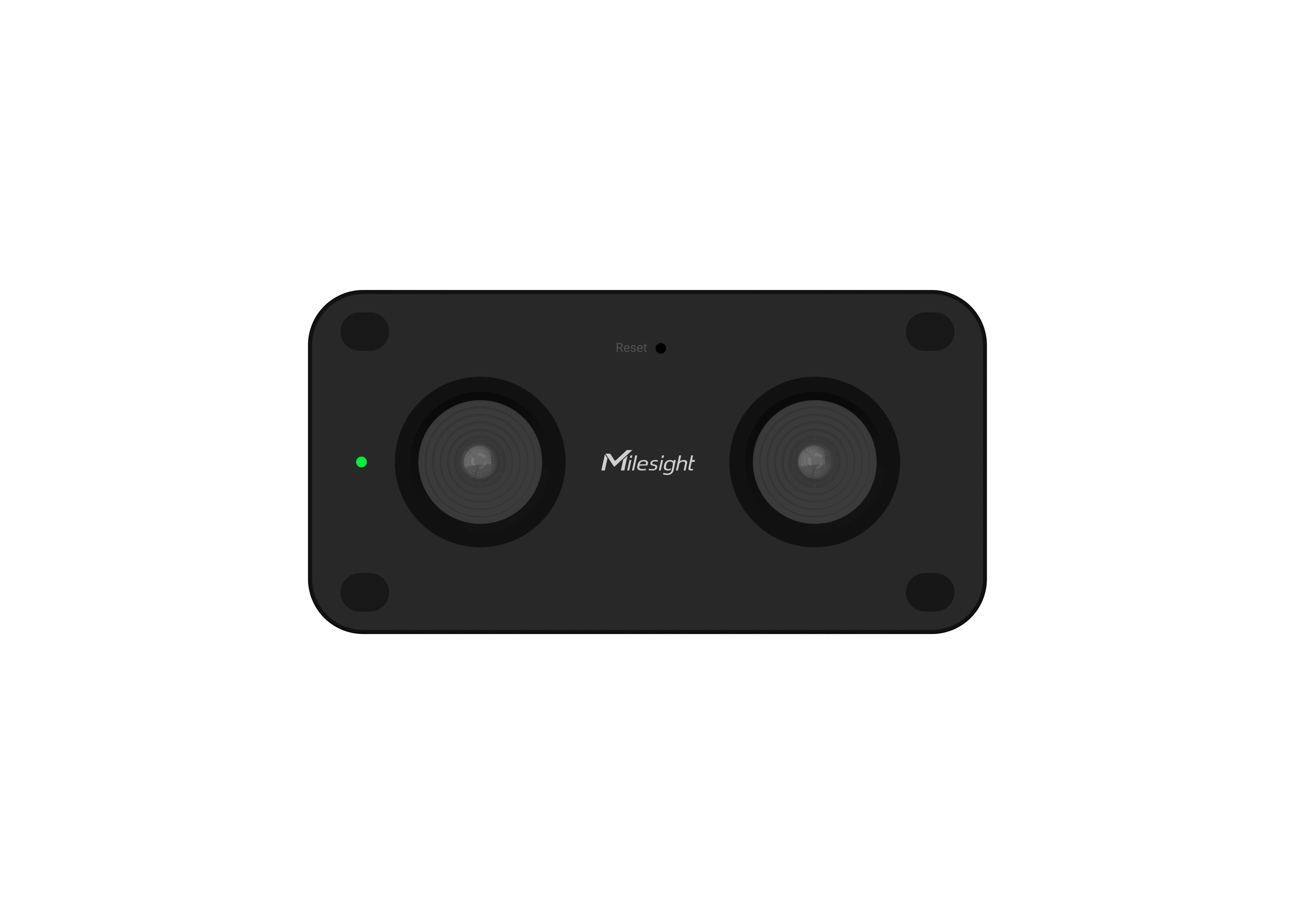

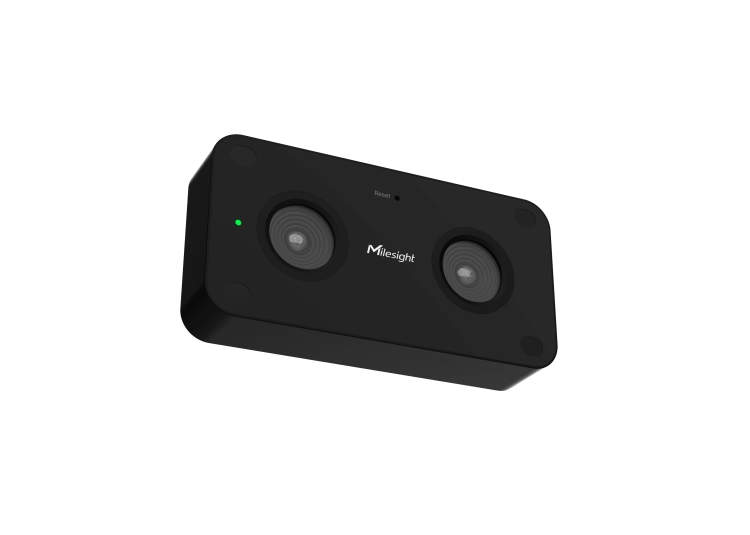

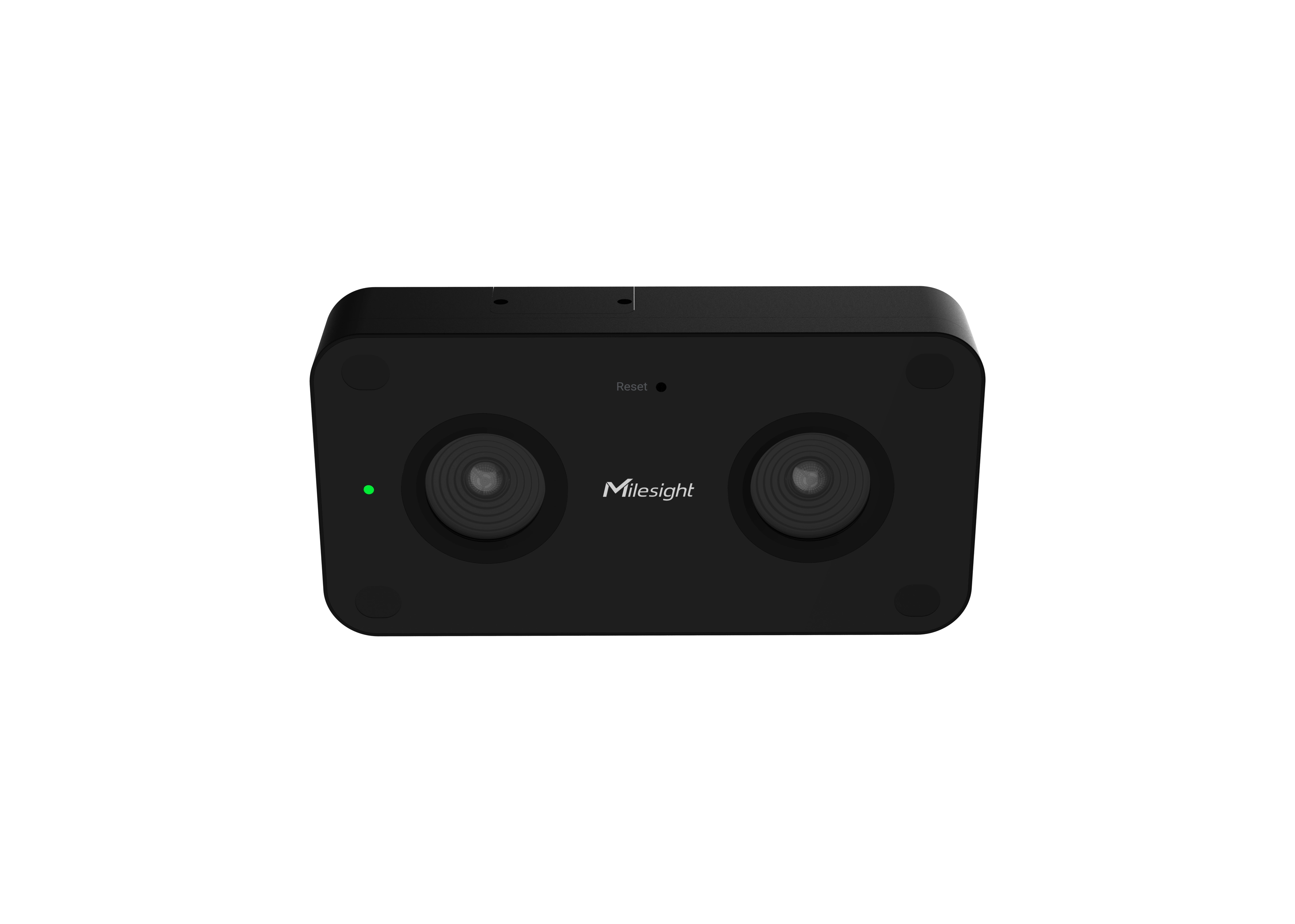

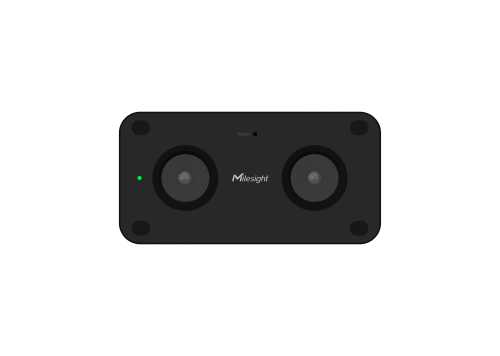

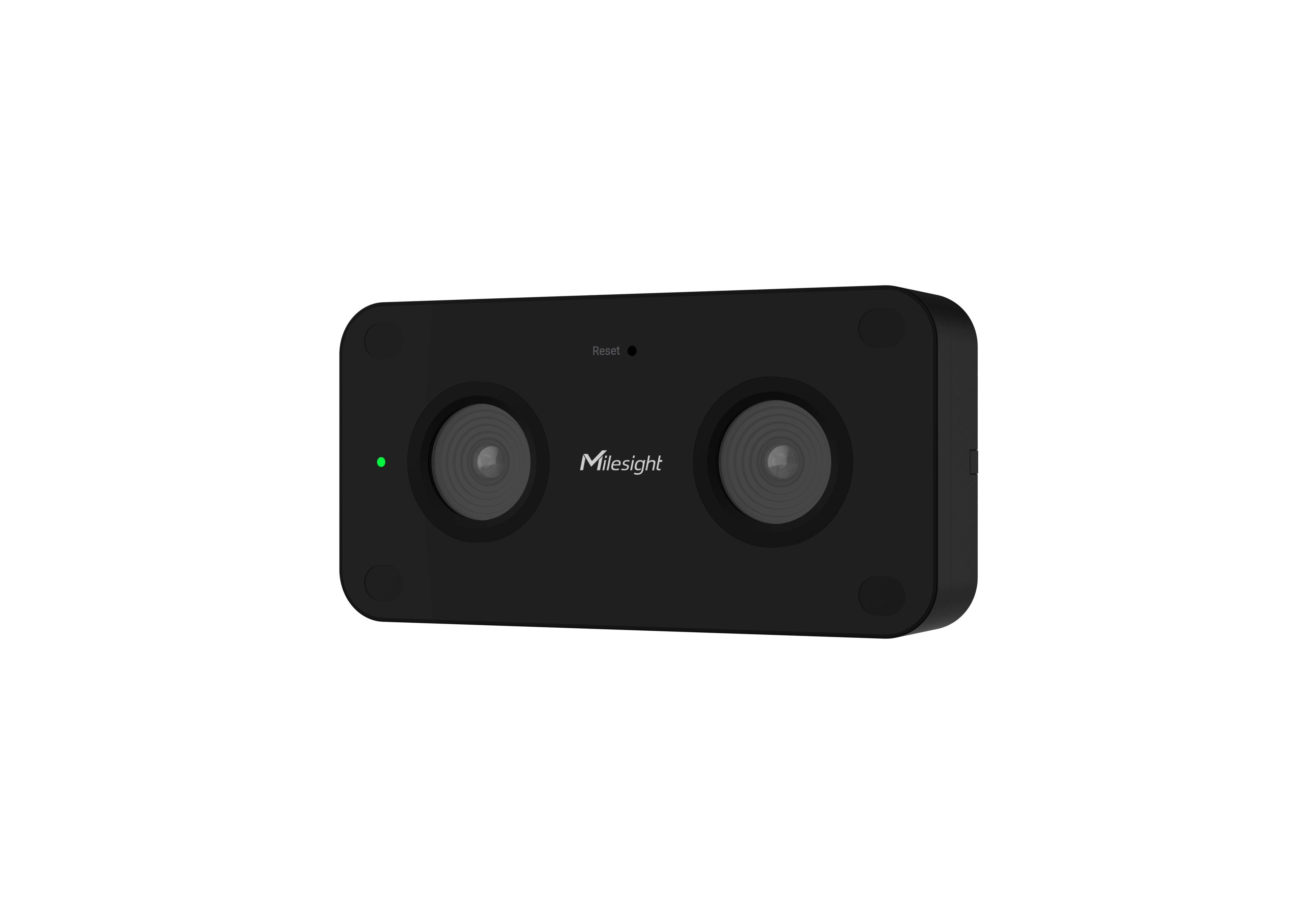

Outdoor AI stereo-vision people-counting sensor
Vendors's code:
Product code: VS125-O-P
Barcode:
Code 39:
ISBN:

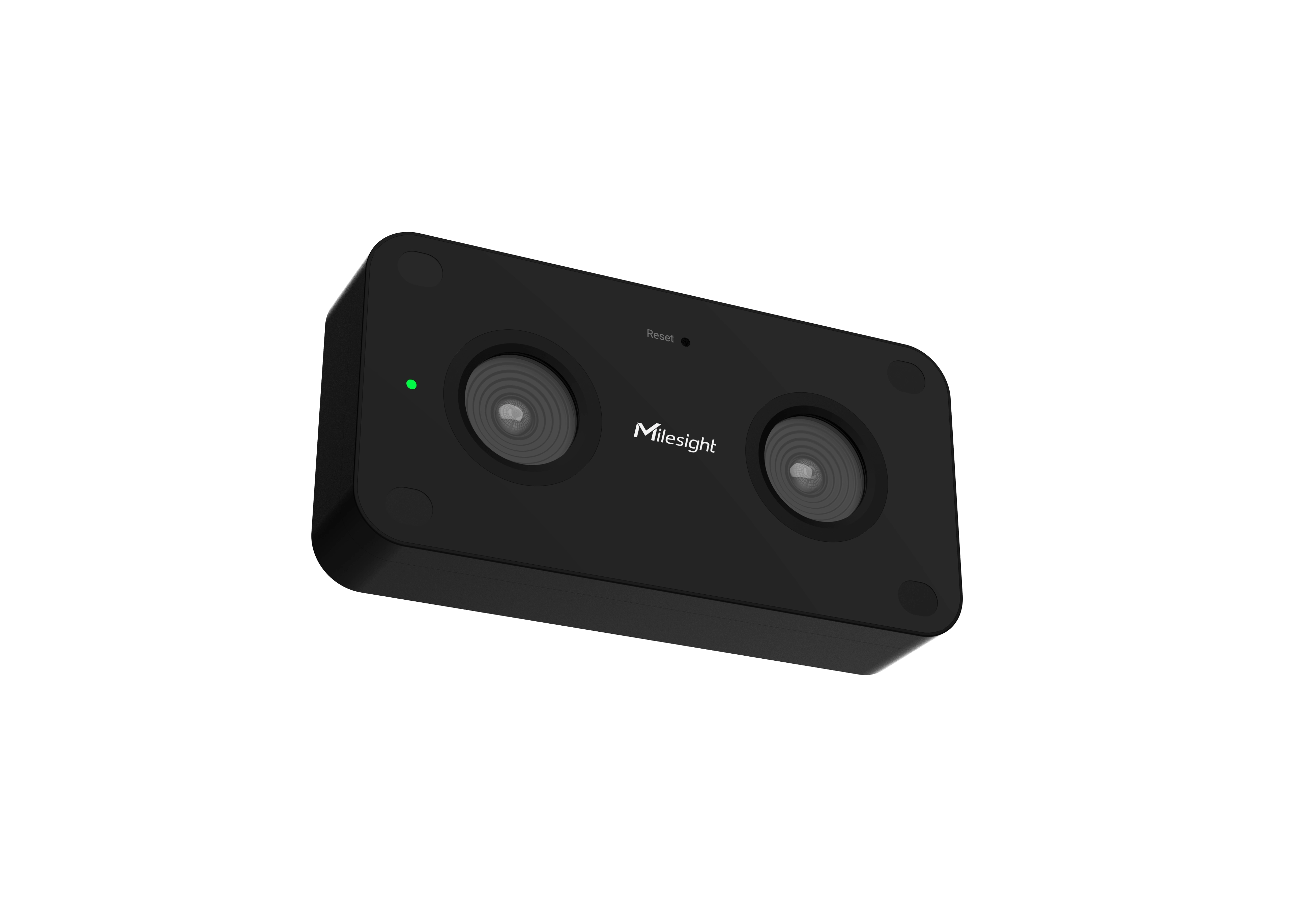

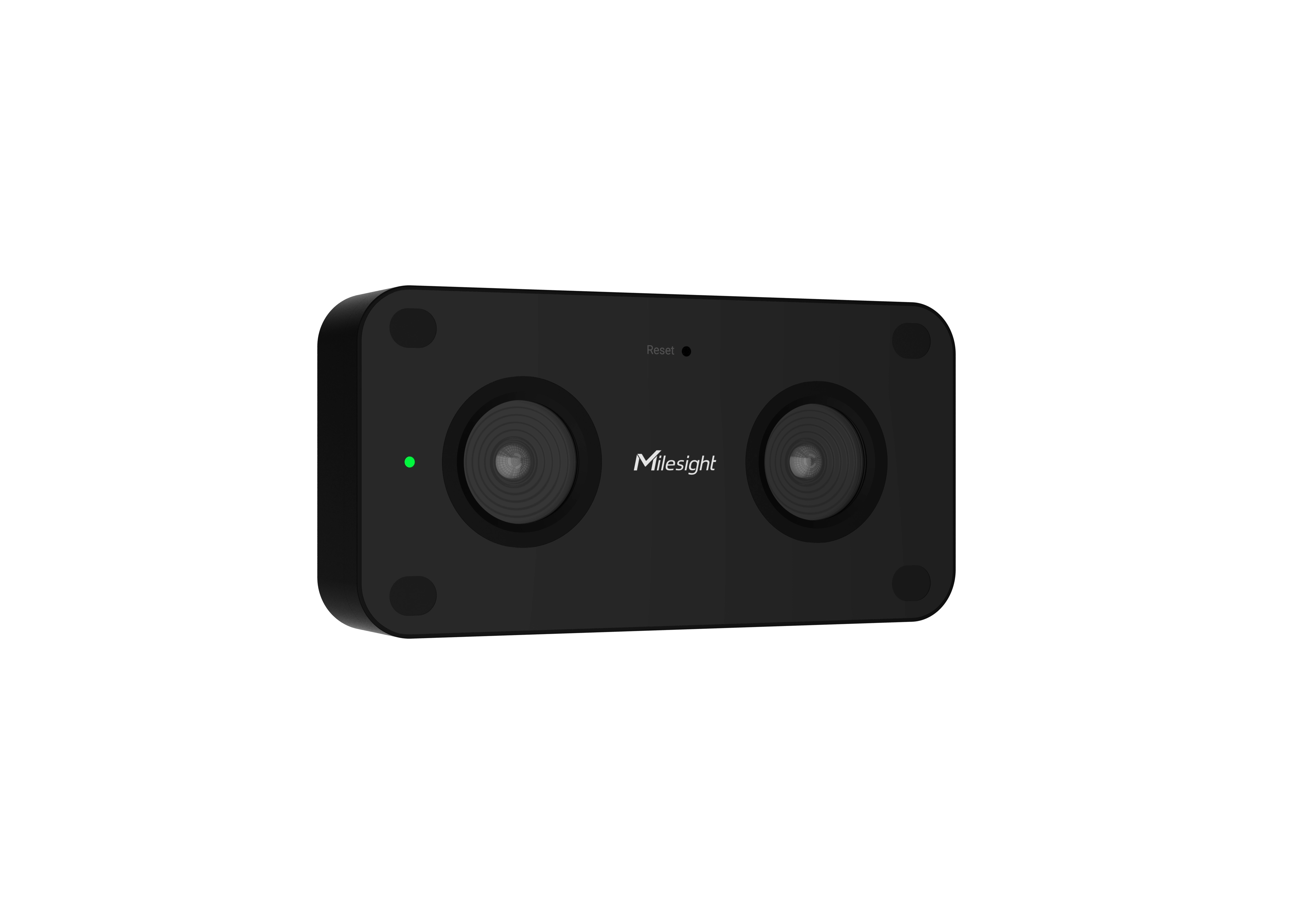

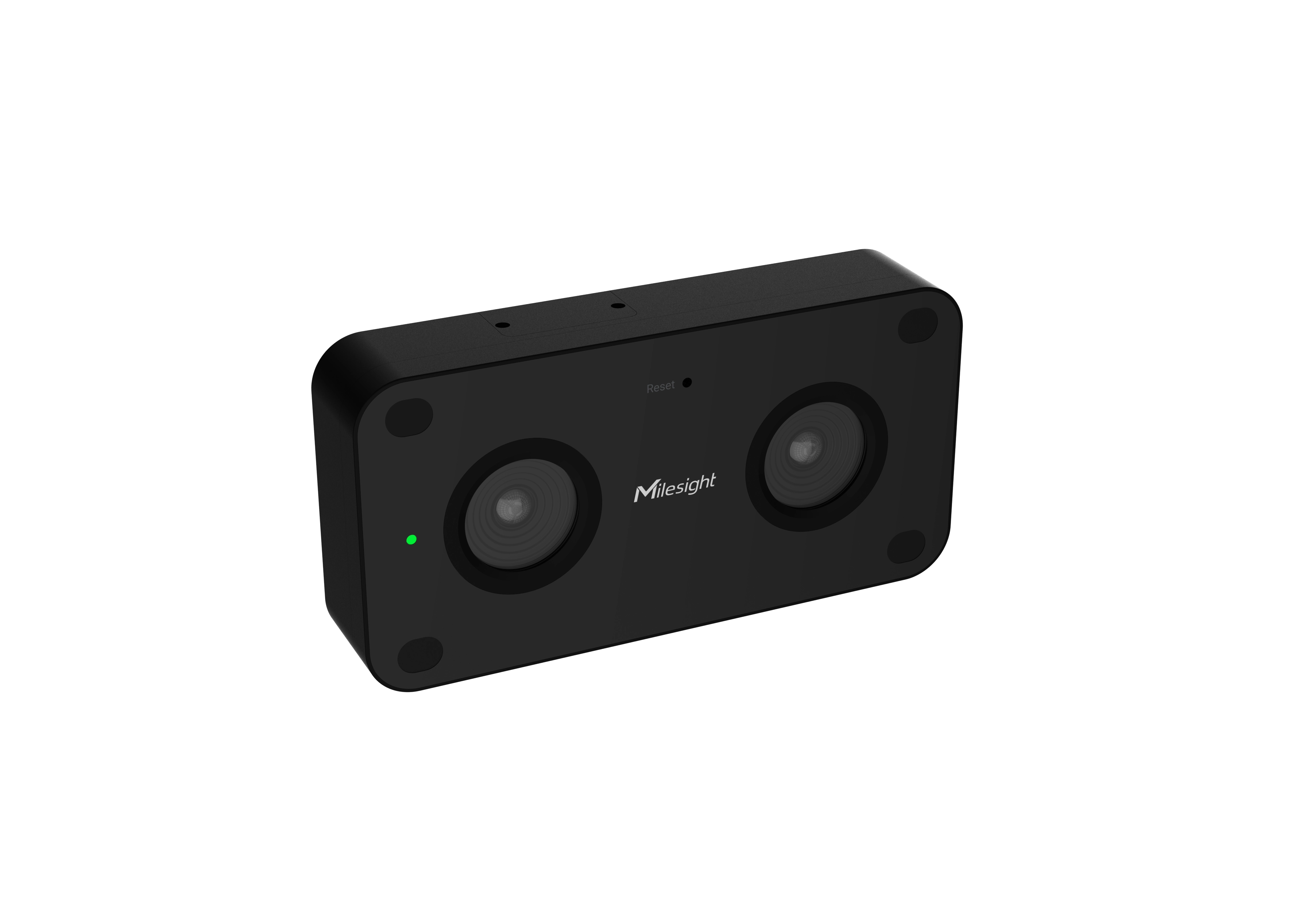

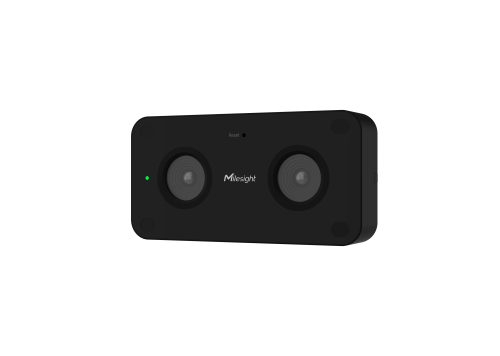

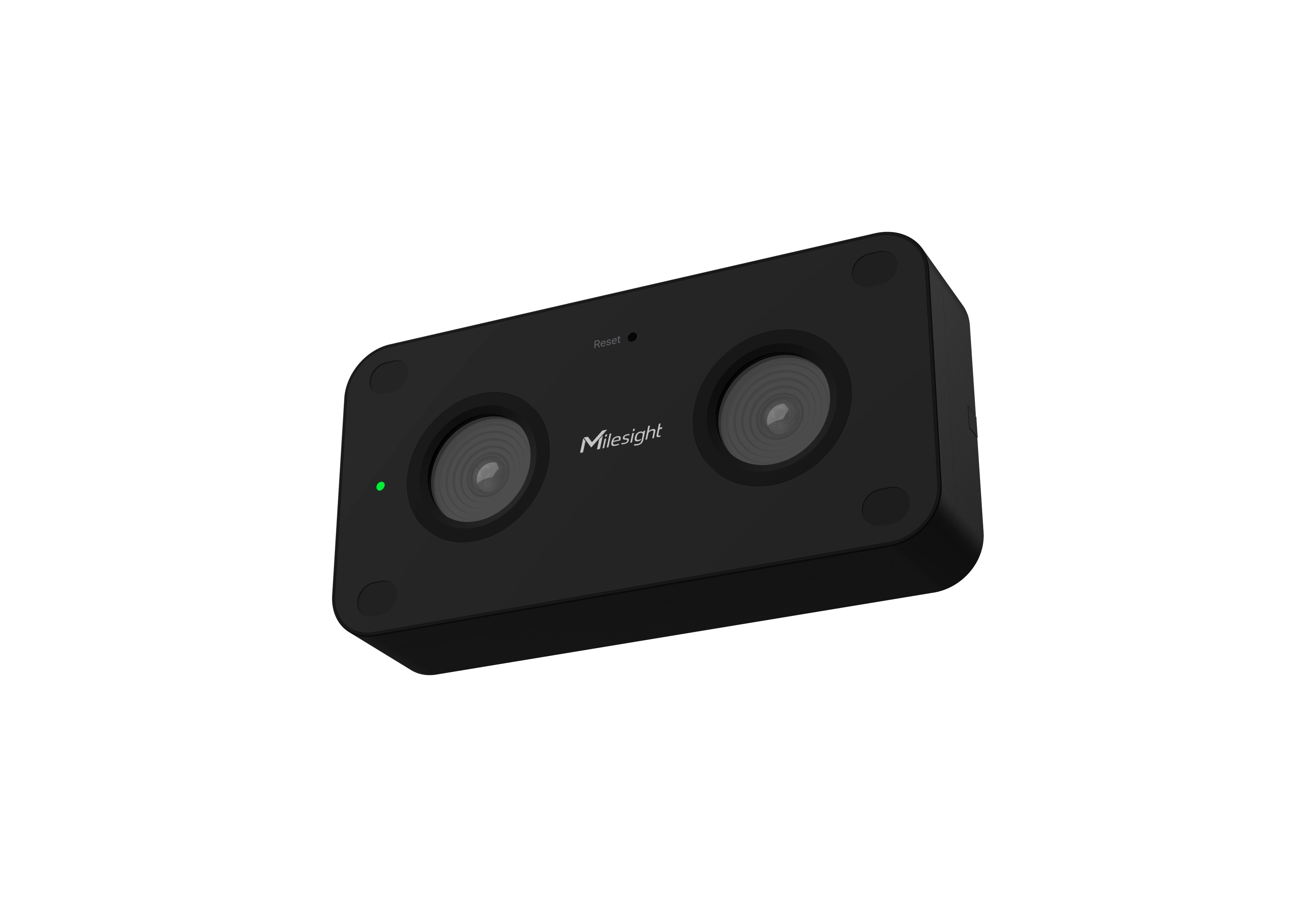

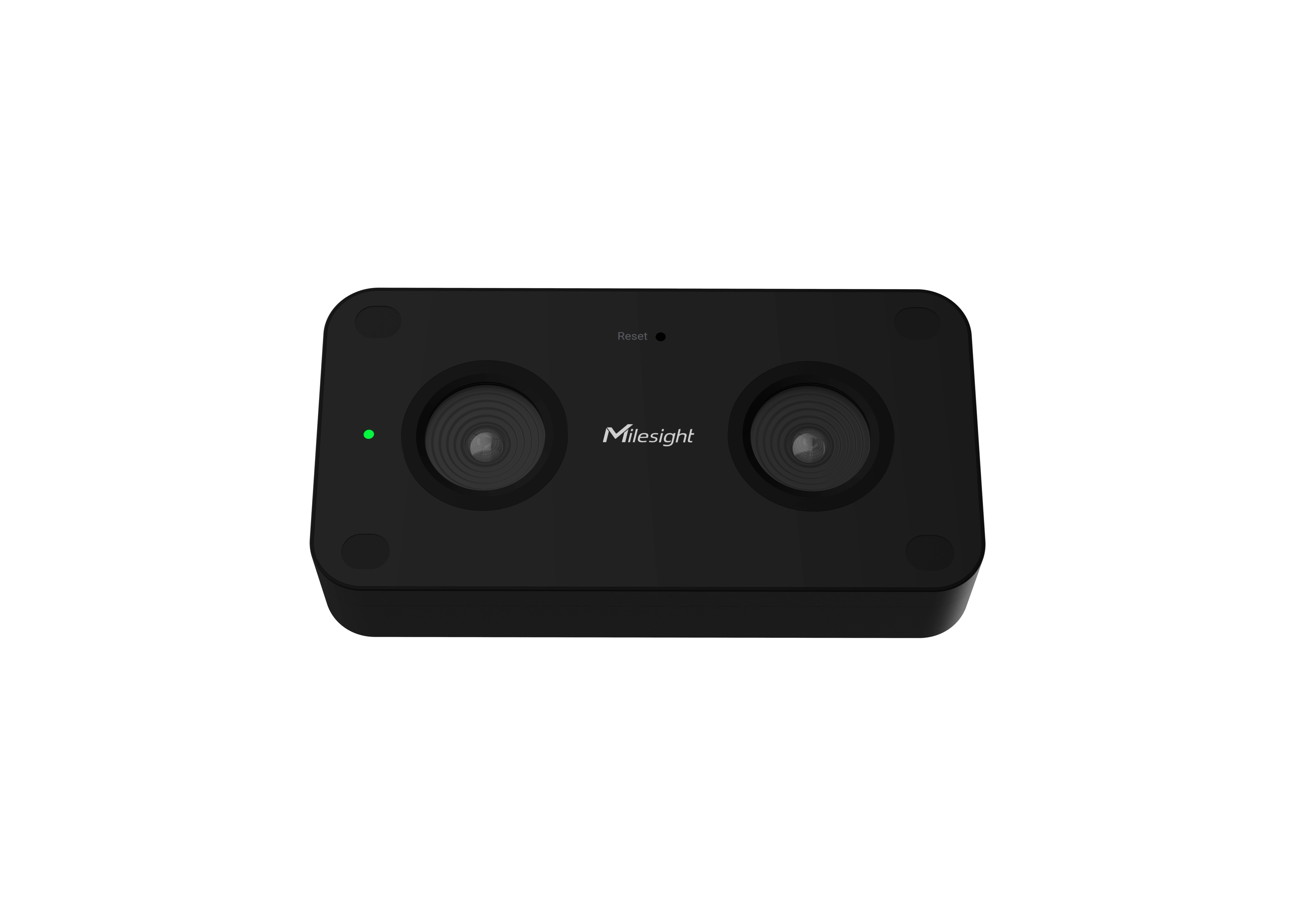

Milesight VS125-O-P is a professional outdoor AI people counter using two 4 MP sensors, 3D stereo vision and deep learning algorithms. The device achieves counting accuracy of up to 99,8%, operates at a mounting height of 2,2–6 m and offers a field of view 101° × 70°. It supports, among other features, bidirectional counting, Regional People Counting, Dwell Time, Group Counting, Heat Map, Staff Detection and child/adult differentiation.
Version VS125-O-P has an IP67 housing designed for outdoor applications and a 10/100 Mbps Ethernet port with 802.3af PoE, so data transmission and power can be provided through a single cable. The device supports, among other protocols, MQTT/MQTTS, HTTP/HTTPS, 802.1X, OpenVPN and BACnet/IP, has DI/DO and local storage for up to 1,000,000 records.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
VS125-O-P — AI Stereo Vision people counter for outdoor operation
Milesight VS125-O-P is a professional people counter designed for outdoor installation. It uses two 4 MP sensors, 3D stereo vision and AI algorithms for precise counting and analysis of people movement.
The reinforced IP67 design protects the device against dust and water, while solutions protecting against infrared radiation, UV and rain enable operation in demanding outdoor environments.
VS125-O-P can be installed at a height from 2.2 to 6 m, making it suitable for building entrances, recreational areas, parks, streets, tourist facilities and other open spaces.
Up to 99.8% accuracy, IP67 and mounting up to 6 m
Do 99,8%
AI and binocular stereo vision provide very high people-counting accuracy.
IP67
The dust- and water-resistant housing is designed for outdoor applications.
Up to 6 m
A wide mounting-height range enables use at different types of passages and entrances.
People-flow analysis in outdoor spaces
Design prepared for outdoor operation
VS125-O-P is the outdoor version of the VS125 family and has an ingress-protection rating of IP67.
The design is adapted for operation in rain and intense sunlight.
The manufacturer uses solutions that reduce the impact of infrared and UV radiation on the optical system.
Two 4 MP sensors and 3D spatial analysis
VS125-O-P uses two 4 MP image sensors with a resolution of 2688 × 1520 pixels.
Images from both sensors are used to create information about depth and the position of objects in space.
Deep learning algorithms then analyze movement and characteristics of detected people, providing counting accuracy of up to 99.8%.
101° × 70° FoV and mounting from 2.2 to 6 m
Built-in infrared illuminators enable the device to operate even in very low light and complete darkness.
The detection area increases with mounting height
Up to 4 entry and exit lines
VS125-O-P enables configuration of up to four bidirectional people-counting lines.
It allows entry and exit directions to be analyzed separately and detailed people-flow statistics to be created.
Up to 4 zones and dwell-time analysis
The device allows up to four independent Regional People Counting areas to be configured.
Each zone can have a complex shape with up to 10 sides and can be used both to determine the number of people and to analyze their dwell time.
Detailed visitor analysis
Group Counting
Recognition of people moving together as a group.
U-turn Filtering
Reduces excessive counts caused by people turning back.
Heat Map
Enables analysis of movement intensity and distribution in the monitored space.
Children, adults, staff and gender
VS125-O-P supports extensive analysis of attributes of detected people.
Within the appropriate installation-height range, the device can distinguish children and adults, identify marked staff and recognize gender.
* Functions available at an installation height of 2.2–4 m. Staff Detection requires appropriate staff identification.
Connecting up to 16 counters
VS125-O-P supports Multi-Device Stitching for up to 16 devices.
This makes it possible to create one extended measurement area at very wide entrances and in large spaces.
Preview control and GDPR compliance
VS125 offers configurable preview privacy settings.
The manufacturer states that data containing personal information is not transmitted as part of standard analytics results and that the solution was designed in accordance with GDPR requirements.
Power and data transmission over one cable
VS125-O-P has an RJ45 10/100 Mbps port supporting IEEE 802.3af PoE.
This makes it possible to limit installation to a single Ethernet cable routed to the device.
Alternatively, the counter can be powered directly with DC 12 V / 1 A.
MQTT, HTTP, BACnet/IP and network functions
The PoE variant enables direct integration with IT, IoT and BMS systems through a standard IP network.
DI/DO and expansion capability
2.4 GHz Wi-Fi and local Web GUI
The device has an additional IEEE 802.11 b/g/n 2.4 GHz Wi-Fi interface operating in AP mode.
Wi-Fi is used for local configuration and service work, while primary data transmission in the VS125-O-P is handled by wired Ethernet.
Up to 1,000,000 records locally
1 000 000
Local memory can store up to one million measurement records.
8 GB
Memory dedicated to validation functions.
8 × 50 000
Supported data retransmission increases continuity of recorded information.
802.3af PoE or DC 12 V / 1 A
IP67 and wide temperature range
Ceiling, extension or lintel
VS125-O-P can be mounted directly on the ceiling.
With the optional multifunctional bracket, installation on a ceiling extension or lintel is also possible, making it easier to adapt the device to the geometry of an outdoor passage.
Key parameters of VS125-O-P
VS125-O-P in a movement-analysis system
Data from the counter can be transmitted directly over the wired IP network to the higher-level system.
-
