Milesight VB01 is a multifunctional adjustable mounting bracket designed for installing Milesight people counters on a ceiling or lintel. The telescopic design allows the sensor mounting height to be adjusted, while the adjustable head enables tilt up to 90° and 360° rotation. The bracket is made of corrosion-resistant aluminium and is available in white or black.
VB01 is available in a short version with an adjustment range of 0,4–0,6 m and an optional long version of 2,05–3 m. It is compatible with VS125 Series, VS133 Series, VS135 Series, VS126 and VS351; an additional mounting plate is used for the VS133 Series. The design supports ceiling and lintel mounting and precise positioning of the sensor relative to the monitored passage.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Milesight VB01 — Adjustable Mounting for People Counters
Milesight VB01 is an aluminium mounting bracket designed for installing compatible Milesight people counters where the device needs to be lowered from the ceiling, mounted on a lintel, or precisely positioned.
The telescopic design enables adjustment of the installation height, while the three-axis ball head allows the sensor to tilt up to 90° and rotate through a full 360°.
This allows the device orientation to be precisely adjusted relative to an entrance, passage, or monitored zone after installation without changing the mounting point of the entire bracket.
Height, Angle and Direction Adjustment
0,4–0,6 m
The standard telescopic version allows the distance between the sensor and mounting surface to be adjusted.
90° / 360°
The adjustable head enables precise setting of the device tilt angle and operating direction.
Aluminium
The lightweight, rigid and corrosion-resistant design is intended for permanent installations.
Flexible People-Counting System Installation
Telescopic Range 0,4–0,6 m
The standard short VB01 version allows length adjustment within the range from 0,4 to 0,6 m.
The solution allows the sensor to be lowered from the ceiling if its actual mounting height is outside the optimal range for the device.
The adjustable length also helps maintain the correct detection-area geometry in facilities with non-standard ceiling construction.
Optional Range 2,05–3 m
Milesight also provides a long, configurable VB01 version.
The adjustment range of this version is from 2,05 to 3 m.
The extended variant can be used in facilities with high ceilings where the people counter must be lowered significantly from the ceiling surface.
90° / 360° Ball Head
The end section of the bracket is equipped with an adjustable ball head.
The tilt range is up to 90°, while rotation is possible through a full 360°.
Once the required position is set, the head can be locked to maintain the correct operating direction of the mounted sensor.
Ceiling or Lintel
VB01 is designed for both ceiling mounting and lintel mounting.
Lintel mounting allows the people counter to be positioned above an entrance even when direct ceiling mounting is difficult or impossible.
For ceiling mounting, the telescopic design allows the sensor height to be adjusted to the requirements of the specific model.
Ceiling
Adjustable mounting directly below the ceiling surface.
Lintel
Can be installed on a structure or lintel above a passage.
Adjustable
The device position can be adjusted after the bracket has been installed.
For Multiple Milesight People-Counter Series
The current manufacturer specification indicates VB01 compatibility with VS125 Series, VS133 Series, VS135 Series, VS126 and VS351.
For devices in the VS133 Series, a suitable adapter plate is required.
Broad compatibility allows one mounting design to be used with several Milesight people-counting sensor families.
Corrosion-Resistant Aluminium Construction
The structural elements of VB01 are made of aluminium.
The manufacturer describes the design as corrosion-resistant, increasing bracket durability in long-term installations.

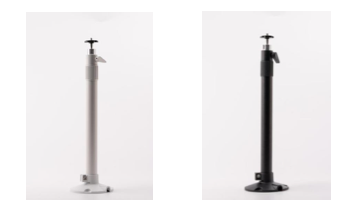

The bracket is available in two colour variants: white and black, allowing it to be matched to the device colour and surroundings.
Weight Depends on Length Version
Cabling Routed Inside the Extension Arm
The VB01 design enables routing the required cables through the inside of the telescopic extension arm.
This reduces cable visibility and provides a neater sensor installation.
This is particularly useful when installing devices requiring wired power or communication.
Accessories Required for Installation
The manufacturer states that VB01 is supplied with 4 sets of mounting screws and 2 L-shaped Allen keys.
For the VS133 Series, an additional adapter plate is provided to ensure correct connection between the device and bracket.
Installation Can Be Extended with VB04
VB01 is compatible with the optional adapter Milesight VB04 Pole Mount Adapter Bracket.
VB04 allows the bracket to be mounted on a pole with a diameter from 10 to 130 mm.
This allows the adjustable VB01 design to be used also in installations without a suitable ceiling surface or lintel.
Key Parameters of Milesight VB01
VB01 in a People-Counter Installation
Multifunction bracket
