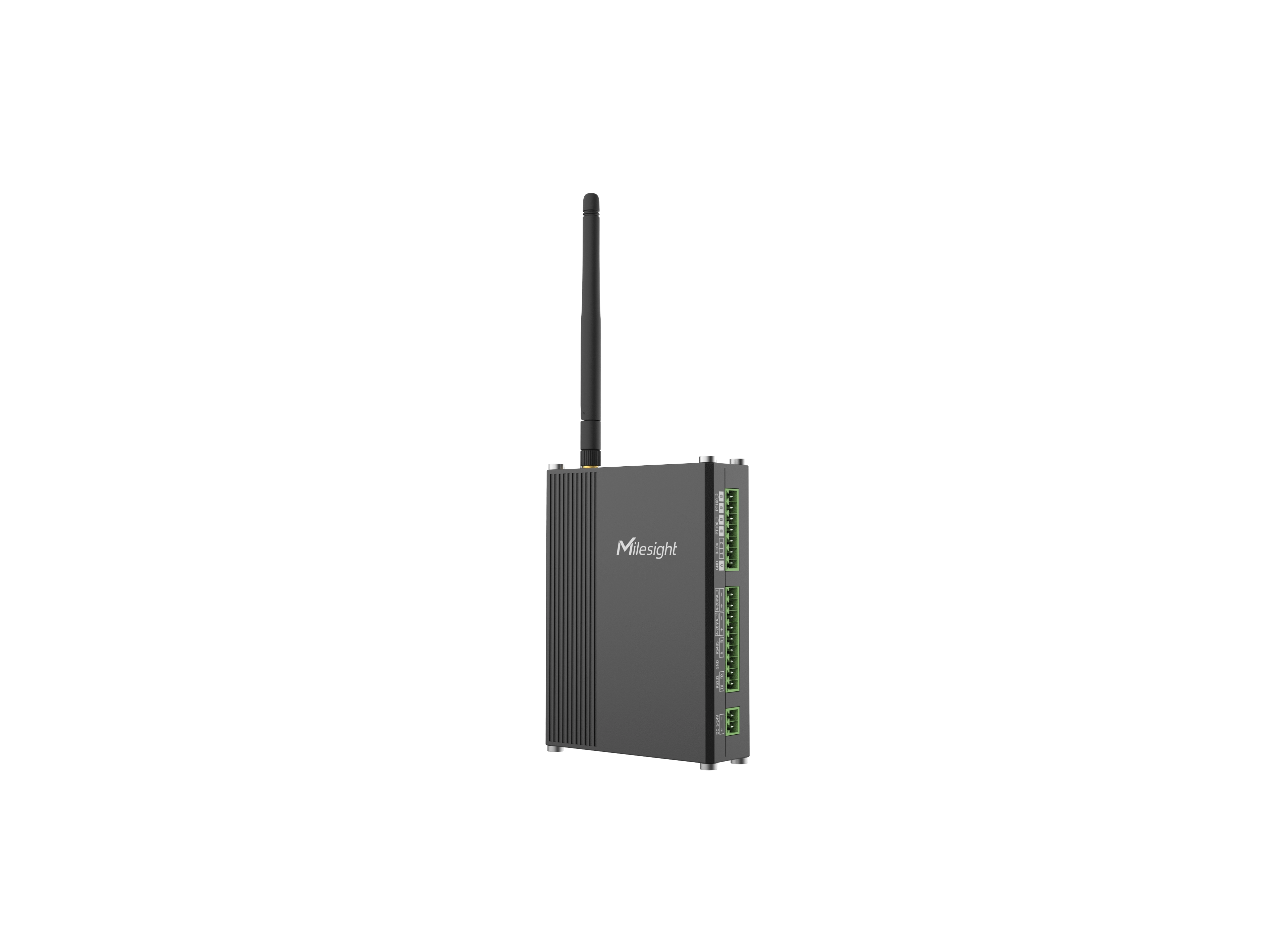

UC300 LoRaWAN IoT controller

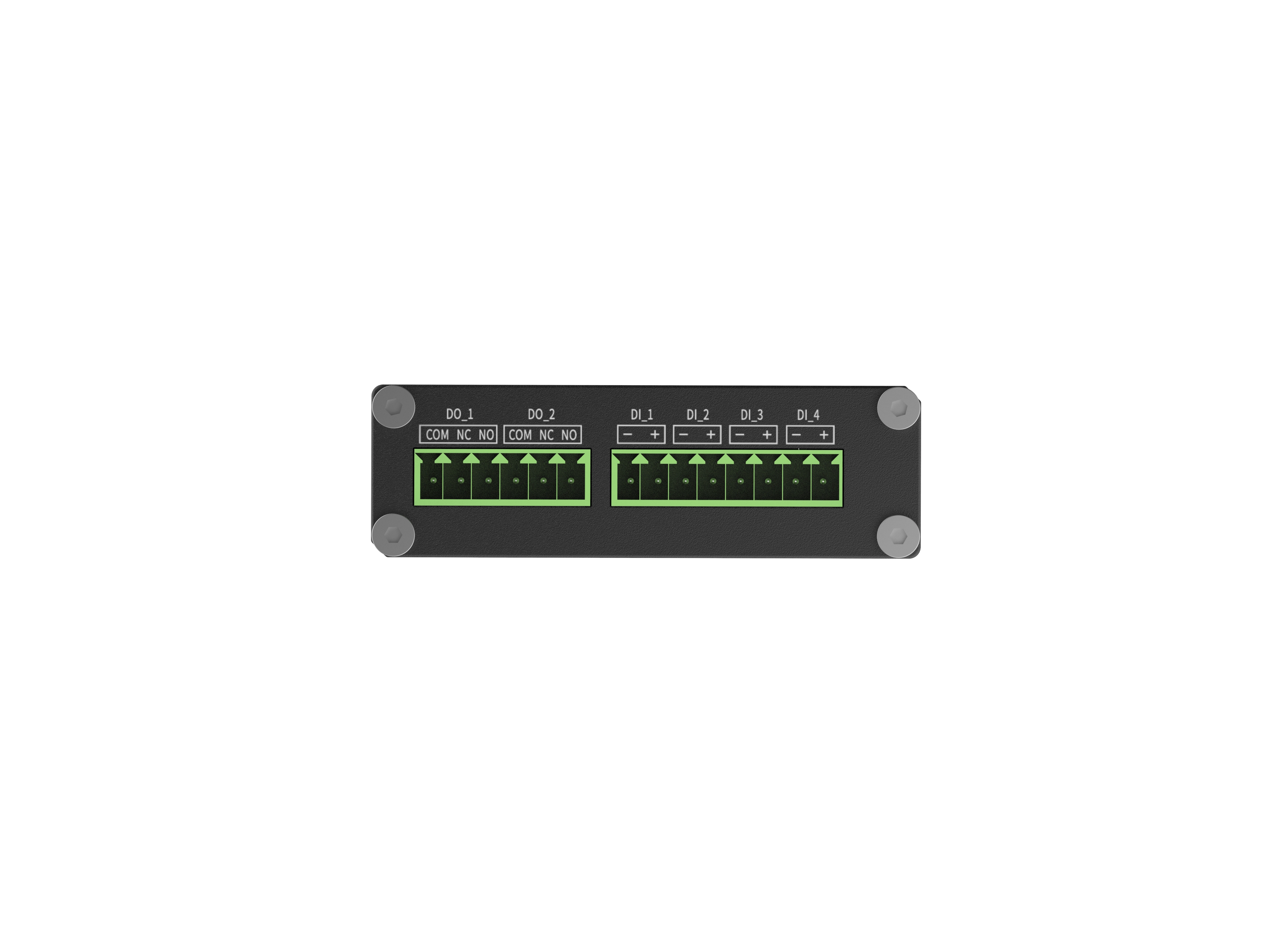

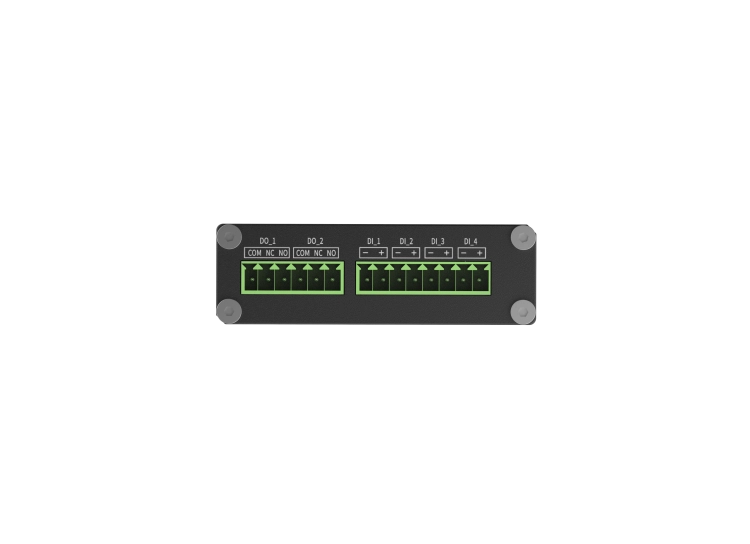

UC300-868M has 4 opto-isolated digital inputs designed to monitor device states and binary signals.

Each input can operate as a Digital Input or Pulse Counter, allowing the controller to work with meters and devices that have a pulse output.

The input voltage range is 3–24 V DC, and the input signal frequency can be up to 4000 Hzfunction.

The controller is equipped with 2 SPDT relay outputs, enabling actuator control.

The maximum contact load is 3 A at 30 V DC or 3 A at 250 V ACfunction.

The outputs can be used by local IF-THEN rules, allowing UC300 to automatically respond to an input change, threshold exceedance or other configured conditions.

UC300 has 2 current inputs 4–20 mA and 2 voltage inputs 0–10 Vfunction.

This allows standard industrial pressure, level, flow, temperature and other process-variable transmitters to be connected directly.

Analogue input resolution is 12 bits. The manufacturer specifies ±5% accuracy for 4–20 mA inputs and ±1% for 0–10 V.

UC300 has 2 dedicated PT100 RTD inputs, allowing resistance sensors to be connected without an additional 4–20 mA or 0–10 V transmitter.

The following connections are supported: 2- and 3-wire, and the declared range is from −200 to +800°Cfunction.

The controller has independent interfaces 1 × RS232 and 1 × RS485function.

RS232 supports transparent transmission, while RS485 can operate transparently or use Modbus RTUfunction.

The available transmission-speed range is 1200–115200 bpsfunction.

Variant 868M is intended, among other applications, for operation under the European EU868. The series also supports IN865 and RU864 in the 868 MHz module.

Maximum transmit power for 868 MHz is 16 dBm, while receiver sensitivity reaches −137 dBm at 300 bpsfunction.

UC300 can work with standard LoRaWAN® gateways and network servers, and the manufacturer’s current product platform provides for operation in Class A and Class C modes.

UC300 supports Milesight D2D, meaning direct communication between compatible Milesight devices.

D2D can operate without a gateway or cloud platform, enabling local control dependencies with a shorter communication path.

The controller can act as a Milesight D2D Controller or Milesight D2D Agentfunction.

UC300 has a local mechanism IF-THEN, enabling conditions and corresponding actions to be defined.

The manufacturer provides the ability to configure up to 16 rules. A condition can include an input value or state, while an action can switch a relay or execute a Modbus command.

Rules are executed locally, so basic automation processes can continue even during temporary loss of network connectivity.

UC300-868M supports the functions Data Storage, Data Retrievability and Data Retransmissionfunction.

This allows data to be stored locally and missing information to be retransmitted after LoRaWAN® connectivity is restored.

The function reduces the risk of data-history gaps during short-term gateway unavailability or deteriorated radio conditions.

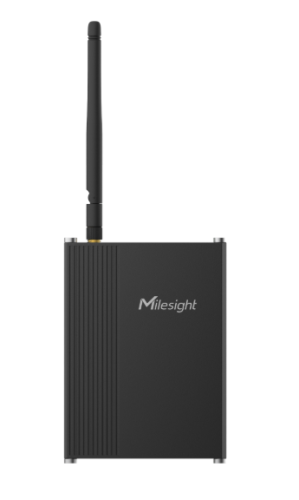

UC300-868M is equipped with 1 SMA Female 50 Ω connector intended for connecting a LoRaWAN® antenna.

The manufacturer offers, among others, an optional magnetic antenna for 868/915 MHz, allowing the antenna to be positioned appropriately relative to the controller.

The controller’s primary power supply uses 5–24 V DC via a 2-pin 3,5 mm terminal block.

The power input has surge protection and reverse-polarity protection.

Alternatively, the device can be powered with 5 V via USB Type-C, which is also used for configuration and console access.

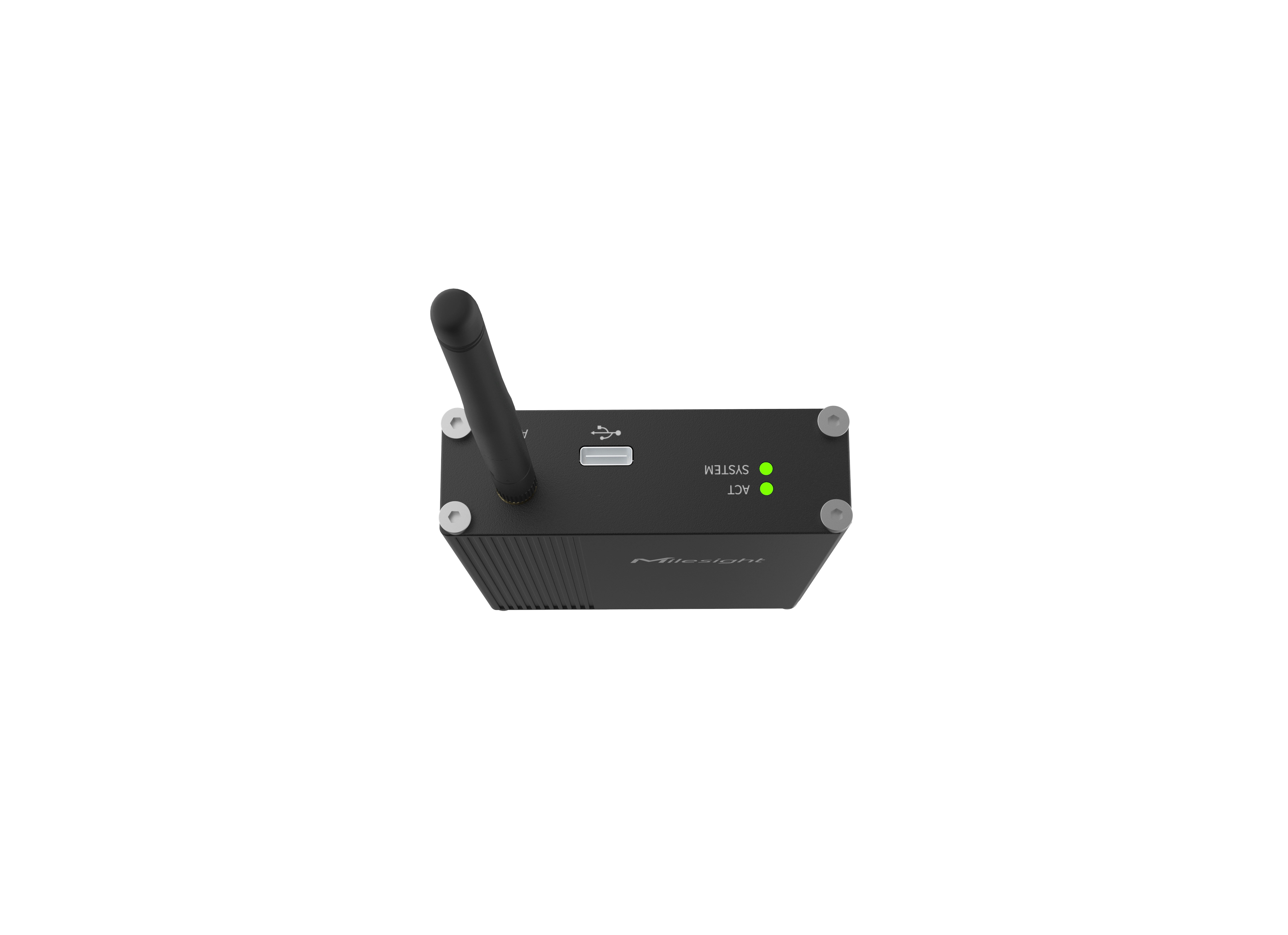

Port USB Type-C is used for power, local configuration and console access.

UC300 also supports remote configuration via LoRaWAN® downlink messages.

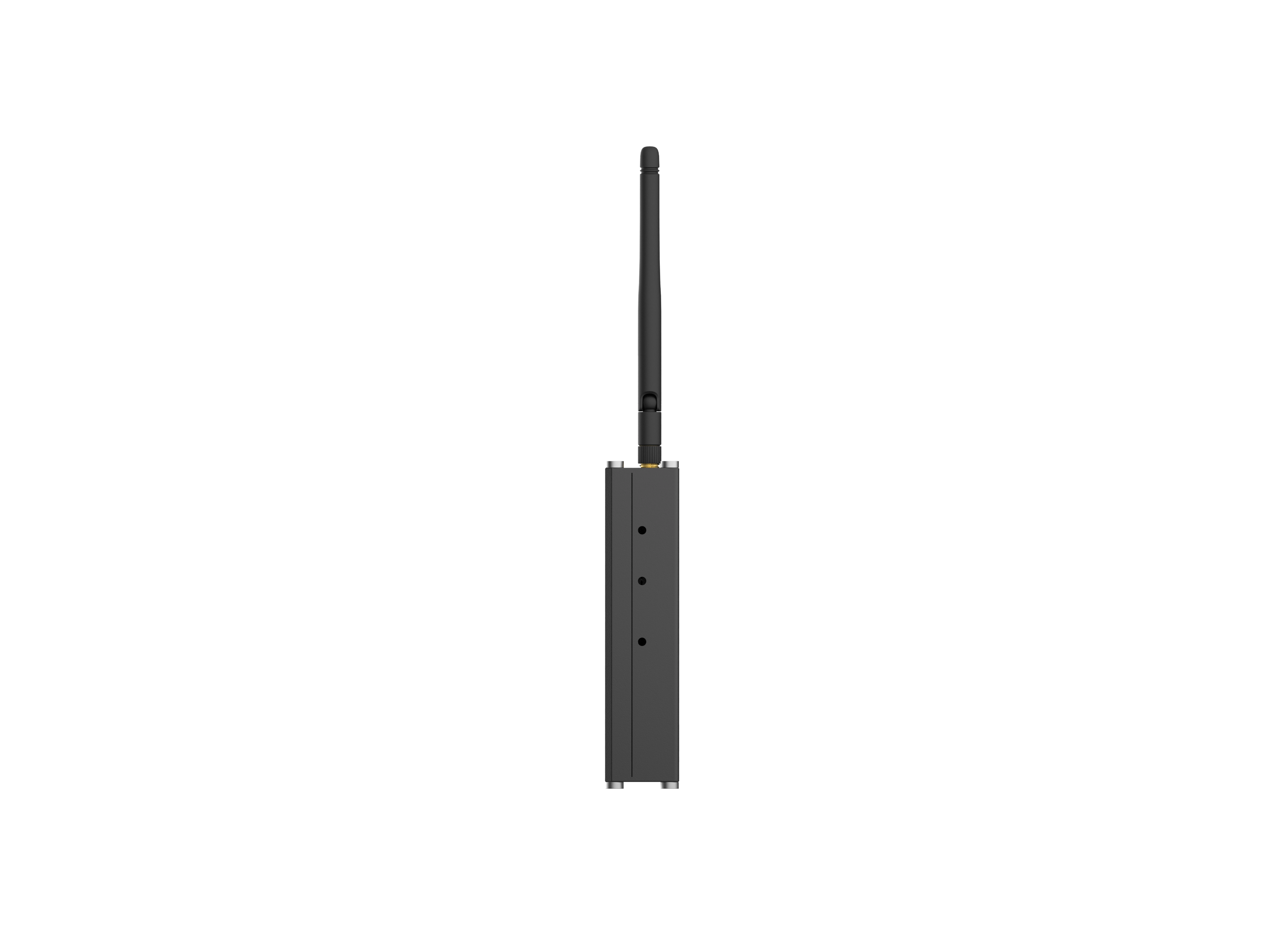

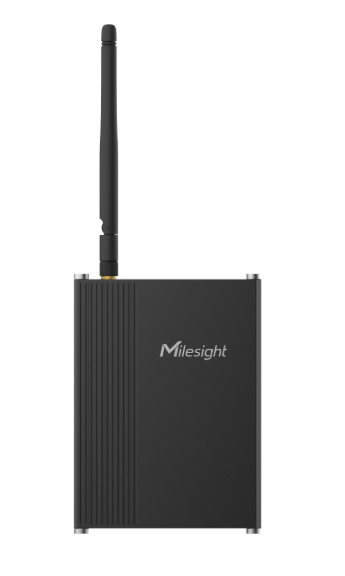

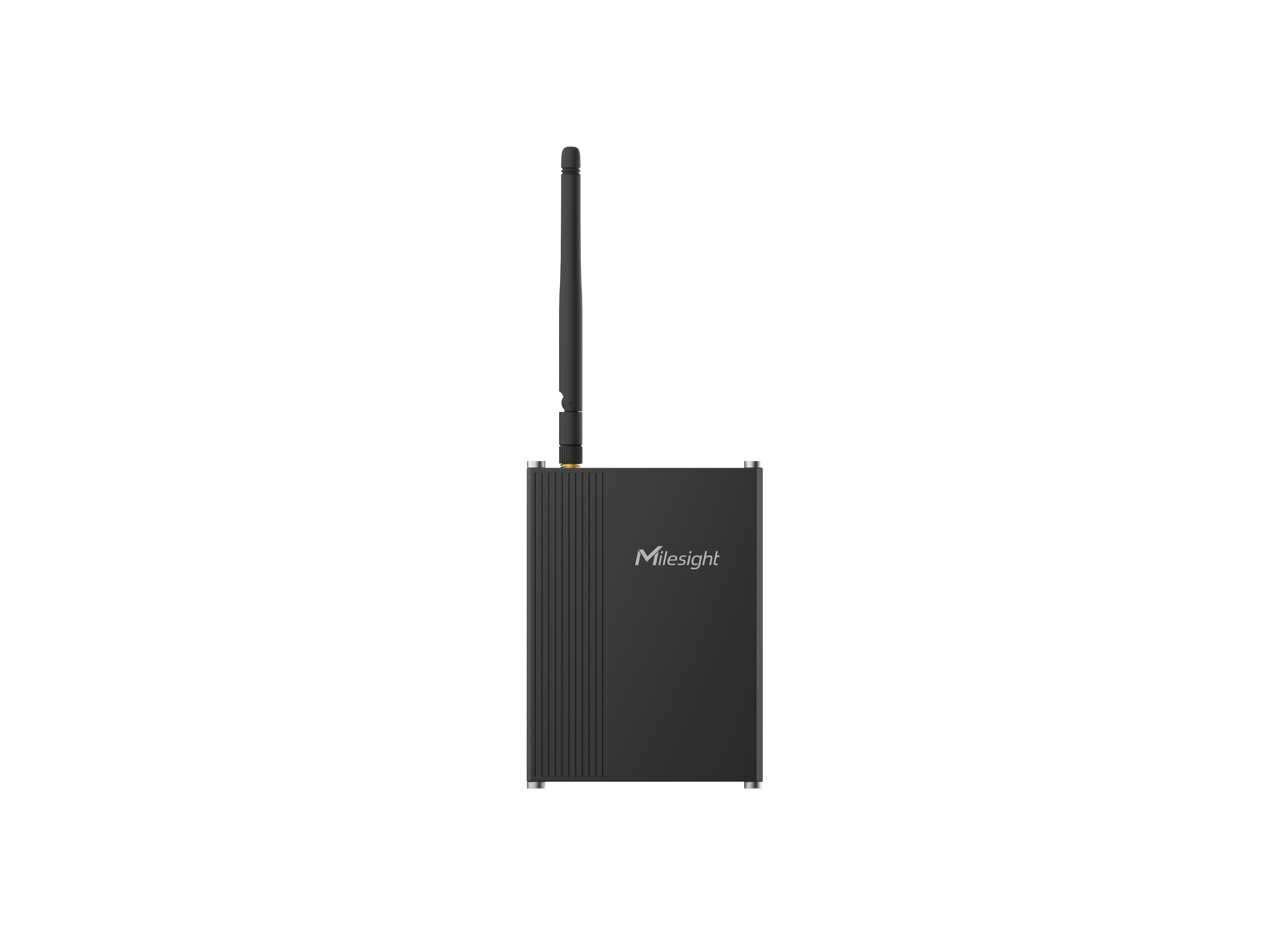

UC300 has black metal enclosure measuring 93 × 70 × 22 mm, excluding the protruding antenna connector.

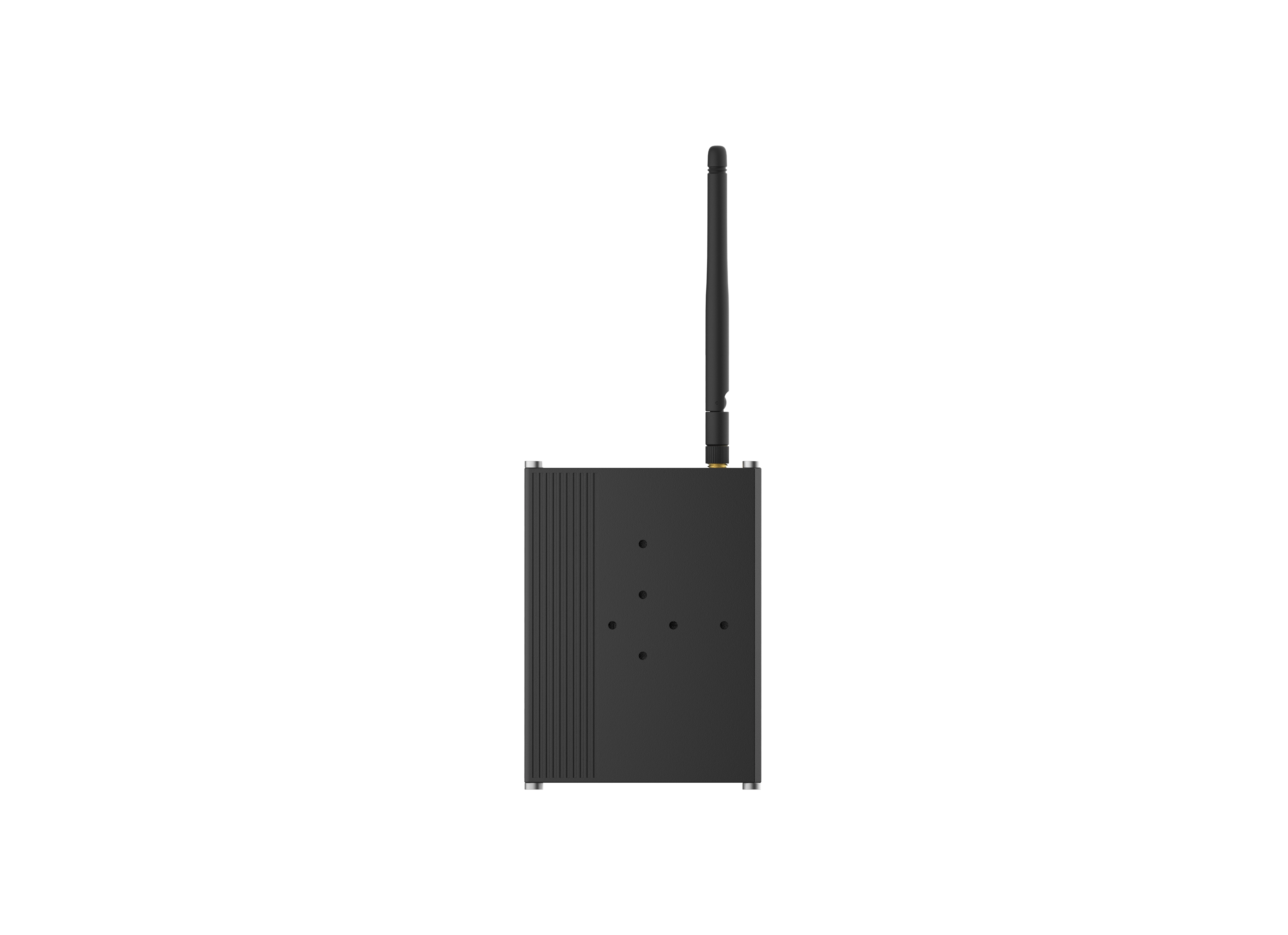

The controller can be installed on a DIN rail, wall or flat surfacefunction.

The operating temperature range is −20…+60°C, and the permissible relative humidity is 0–95% non-condensing.
