Insertion temperature sensor (1 piece)
Vendors's code:
Product code: TS101-868M (1 Piece)
Barcode:
Code 39:
ISBN:

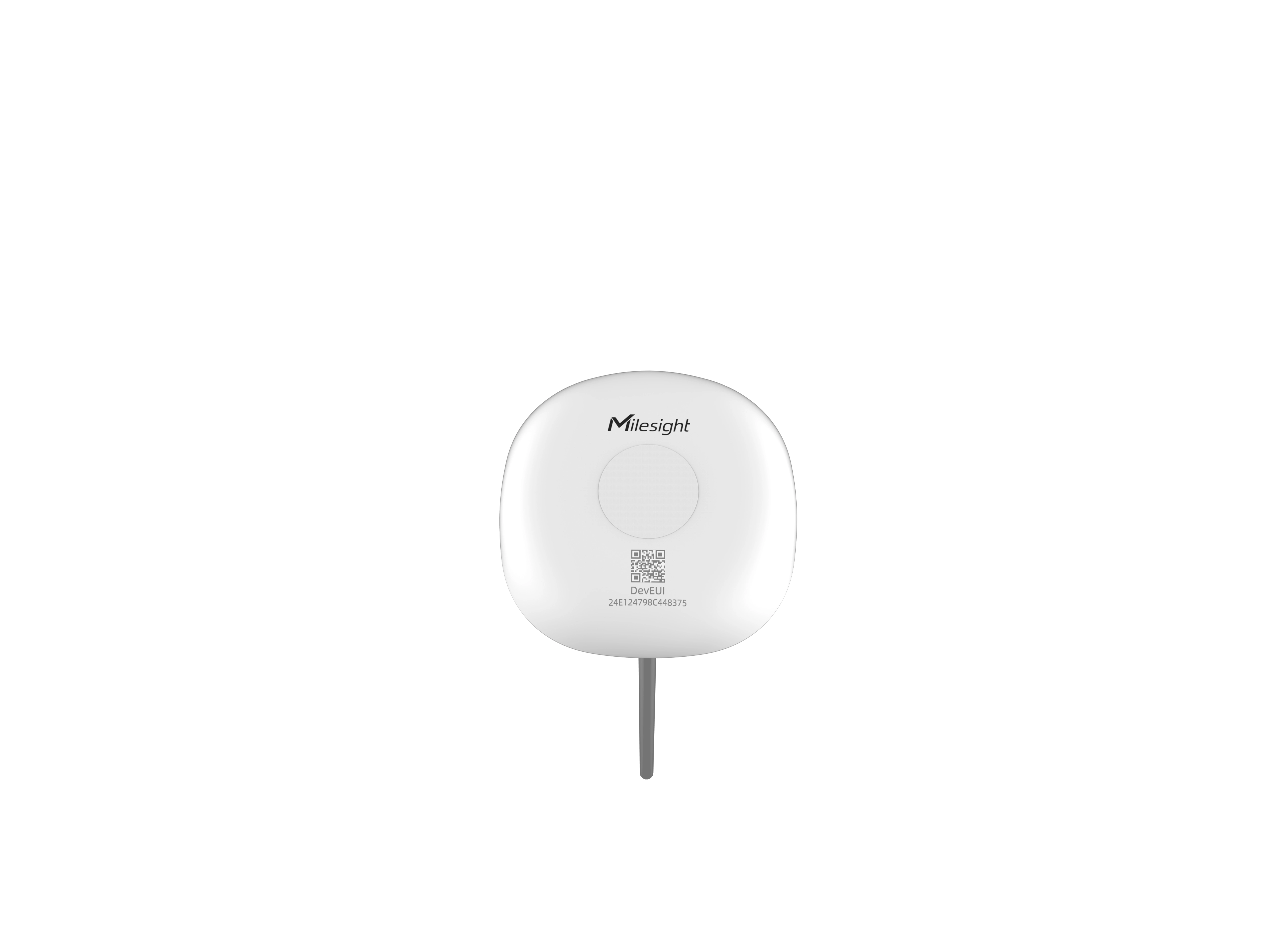

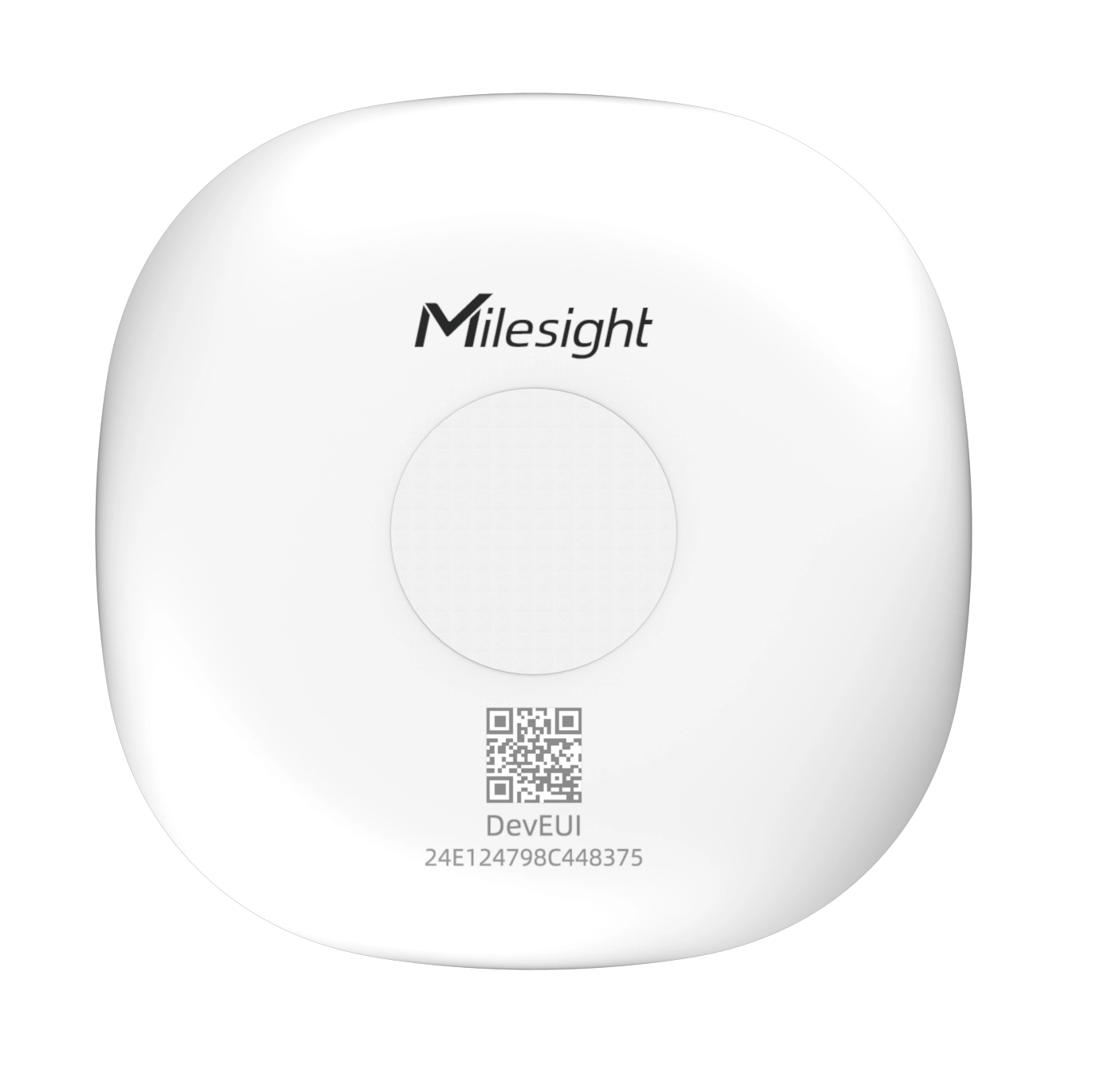

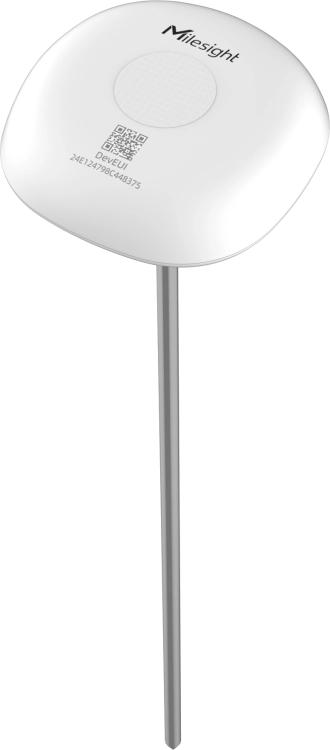

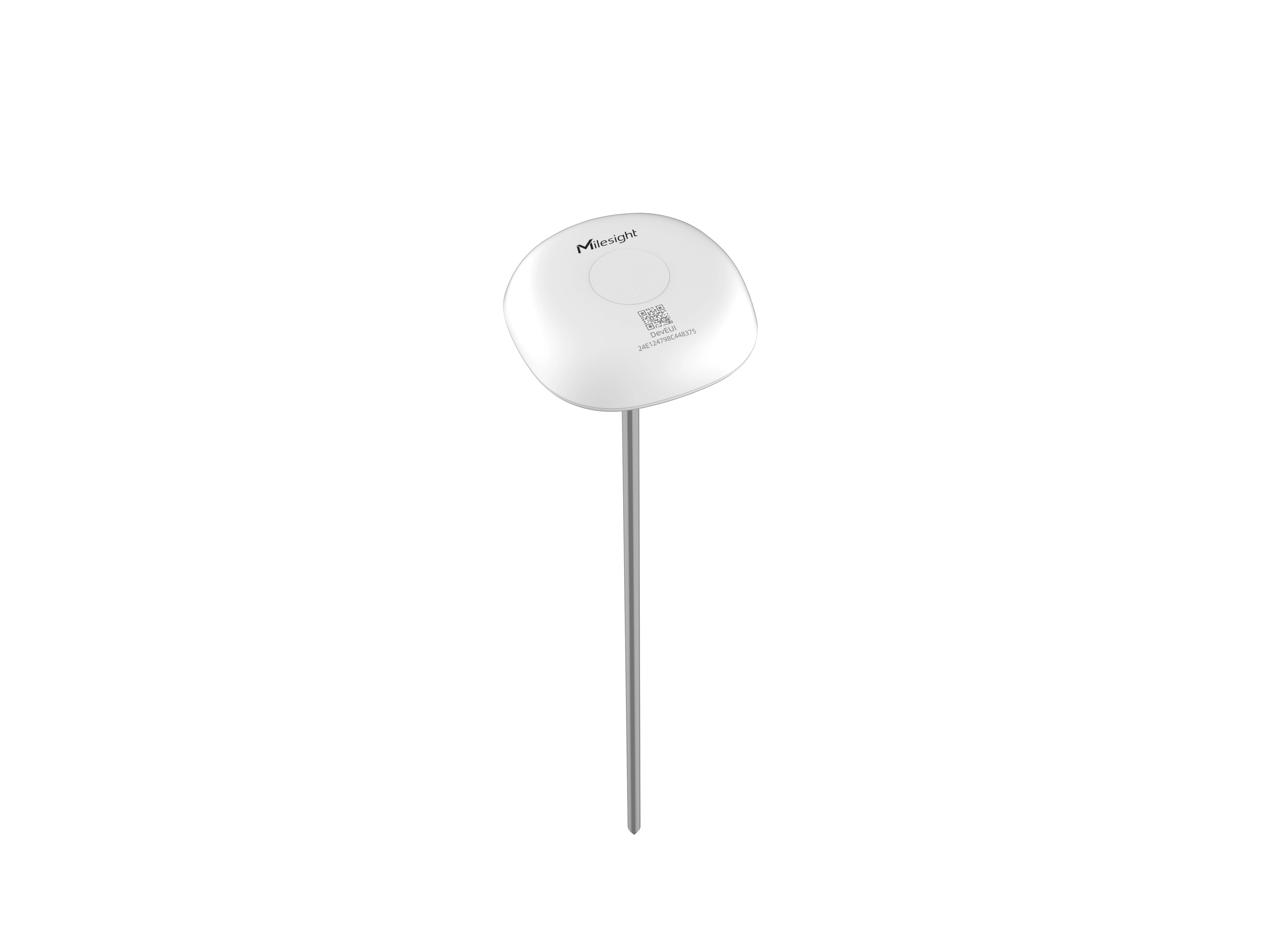

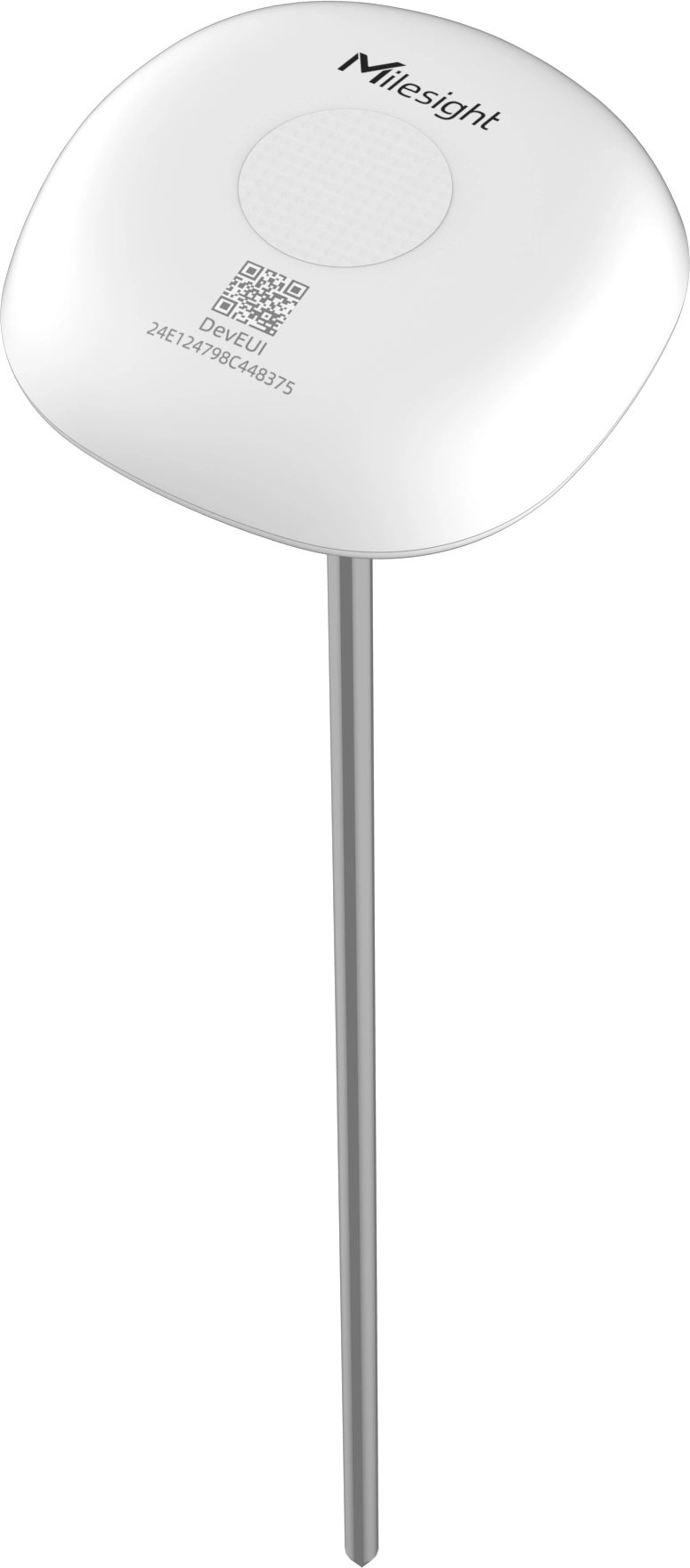

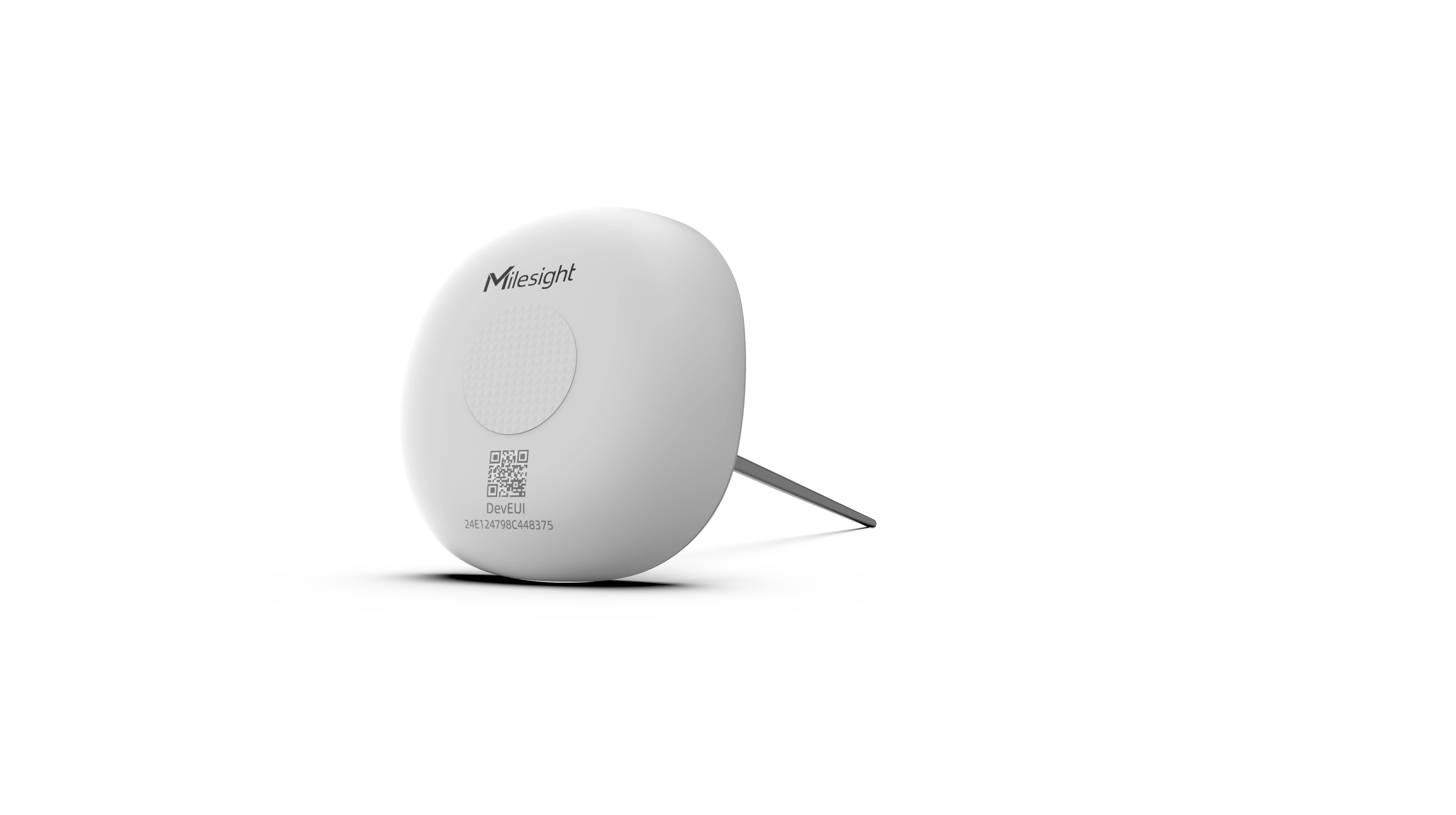

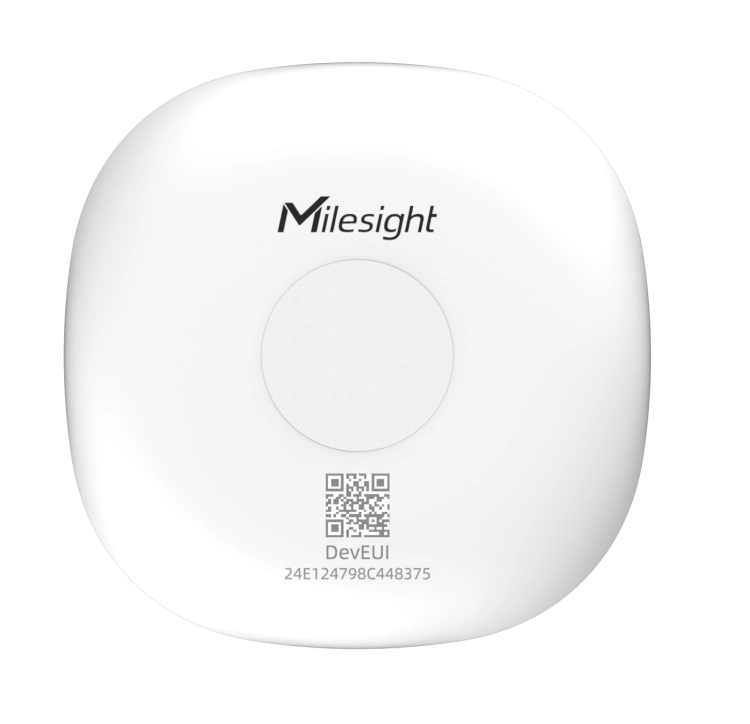

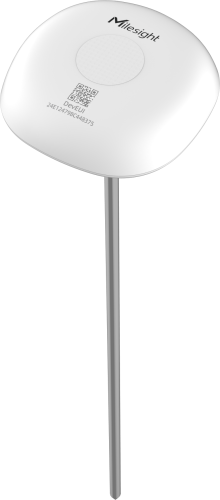

Milesight TS101-868M is an integrated LoRaWAN temperature sensor with an insertion probe measuring 400 mmdesigned for monitoring temperature inside stored materials. The measurement range is −30…+70°Cwith a typical accuracy of ±0,5°C and a resolution of 0,1°C.
The 316 stainless steel Food Grade probe and phosphine-resistant IP67 enclosure make the TS101 suitable for applications including grain and tobacco storage, haystacks, and compost piles. The device features storage for 1200 records, data retransmission, a rapid temperature-change alarm, and a replaceable 4000 mAh battery providing up to 10 years of operation.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
TS101 — Temperature Monitoring Inside Stored Materials
Milesight TS101 is an integrated temperature sensor designed for direct measurement inside piles, stacks, and stored bulk materials.
The long stainless steel probe can be inserted directly into the monitored material so that the measurement reflects the temperature inside the stack rather than only the surrounding air temperature. Data is transmitted wirelessly via the LoRaWAN network.
Measurement Directly Inside the Material

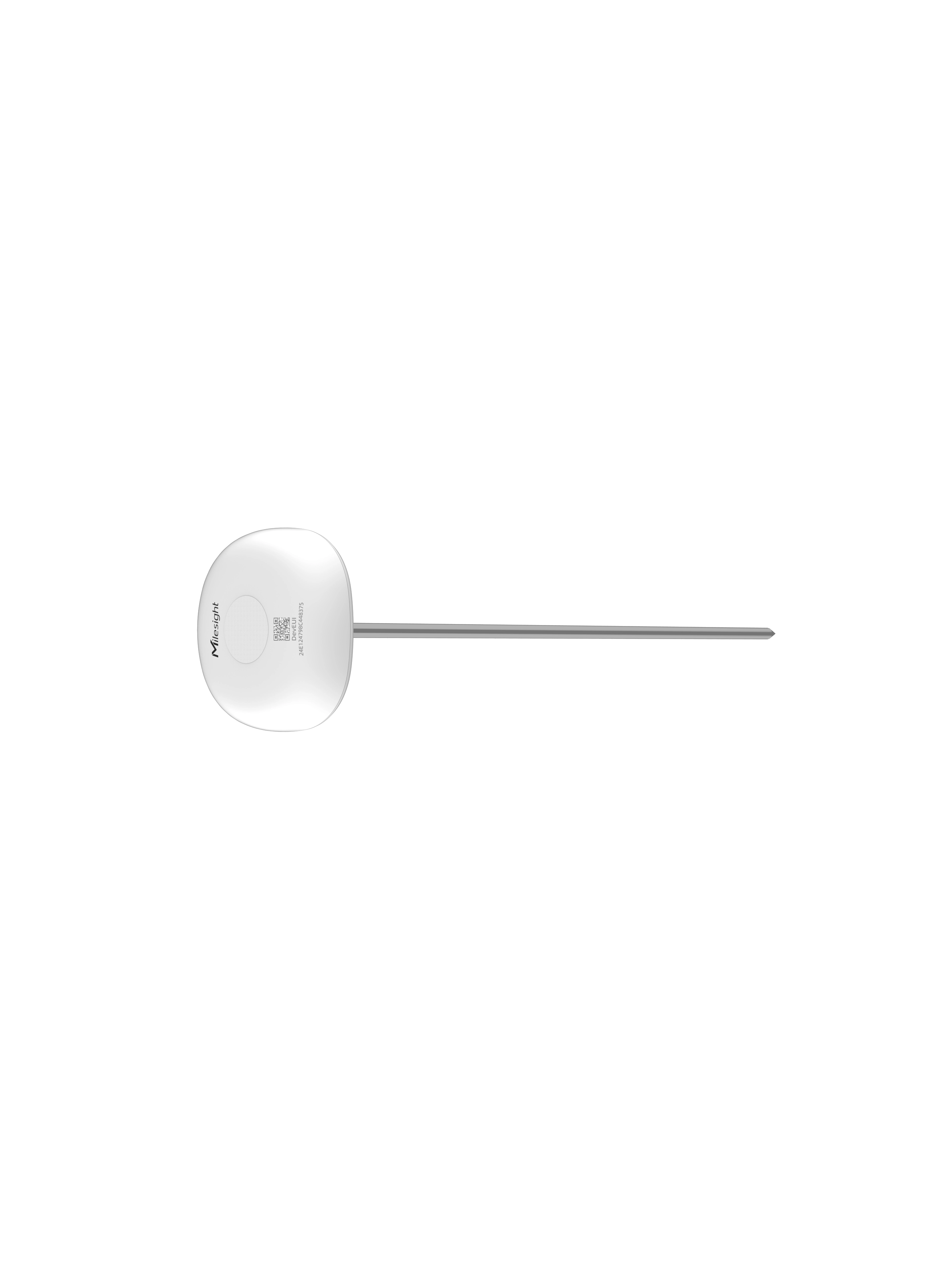

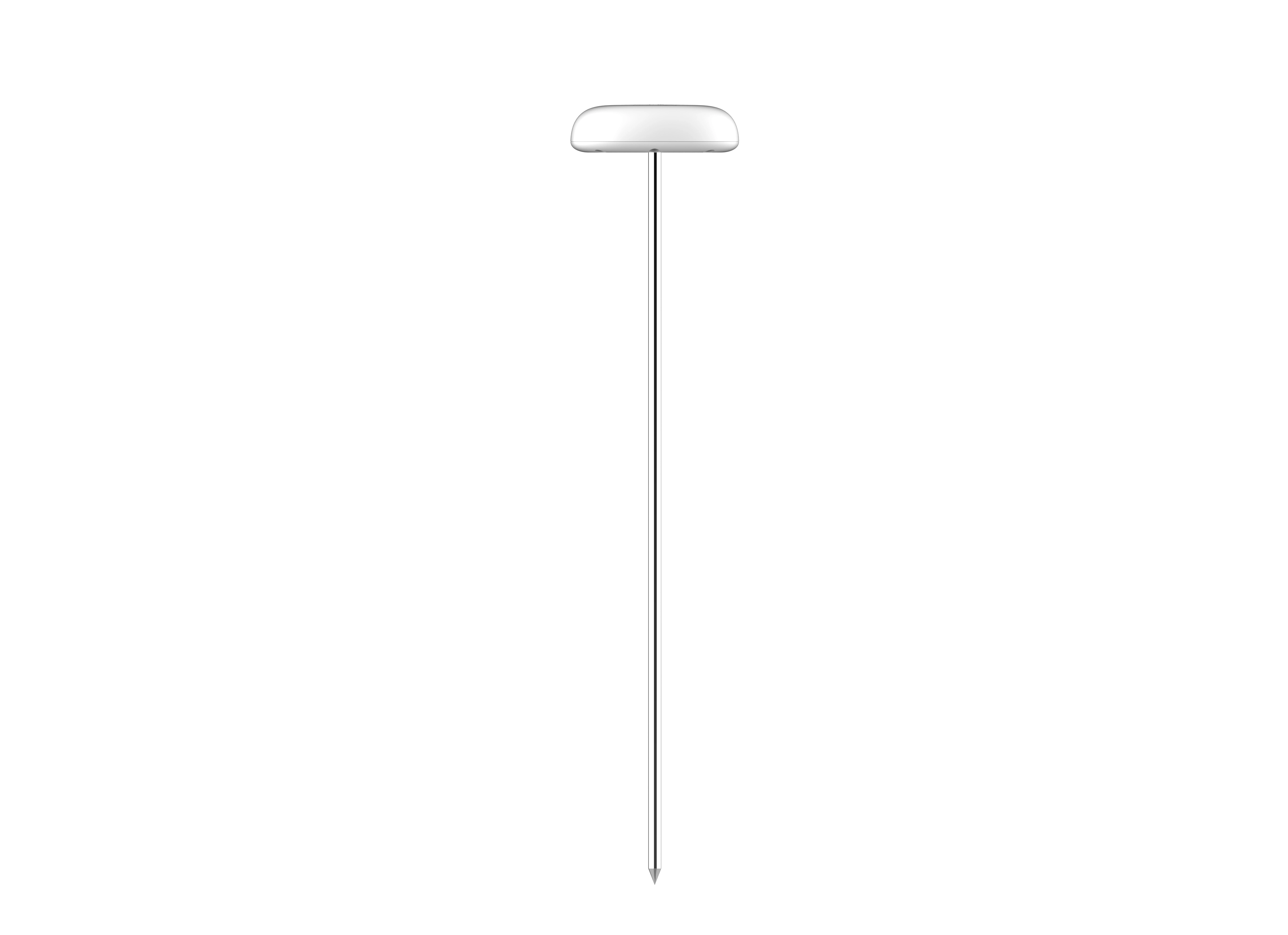

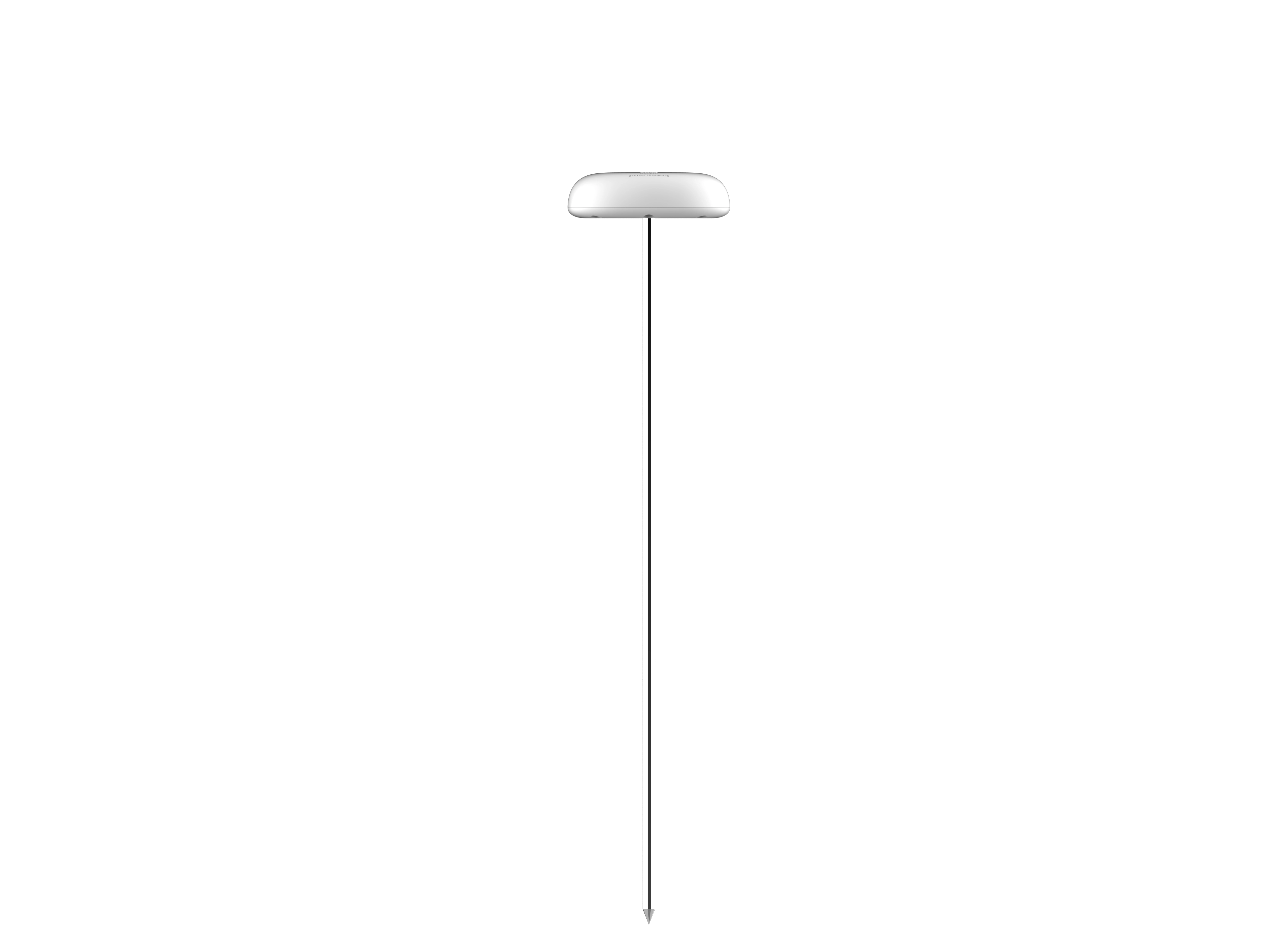

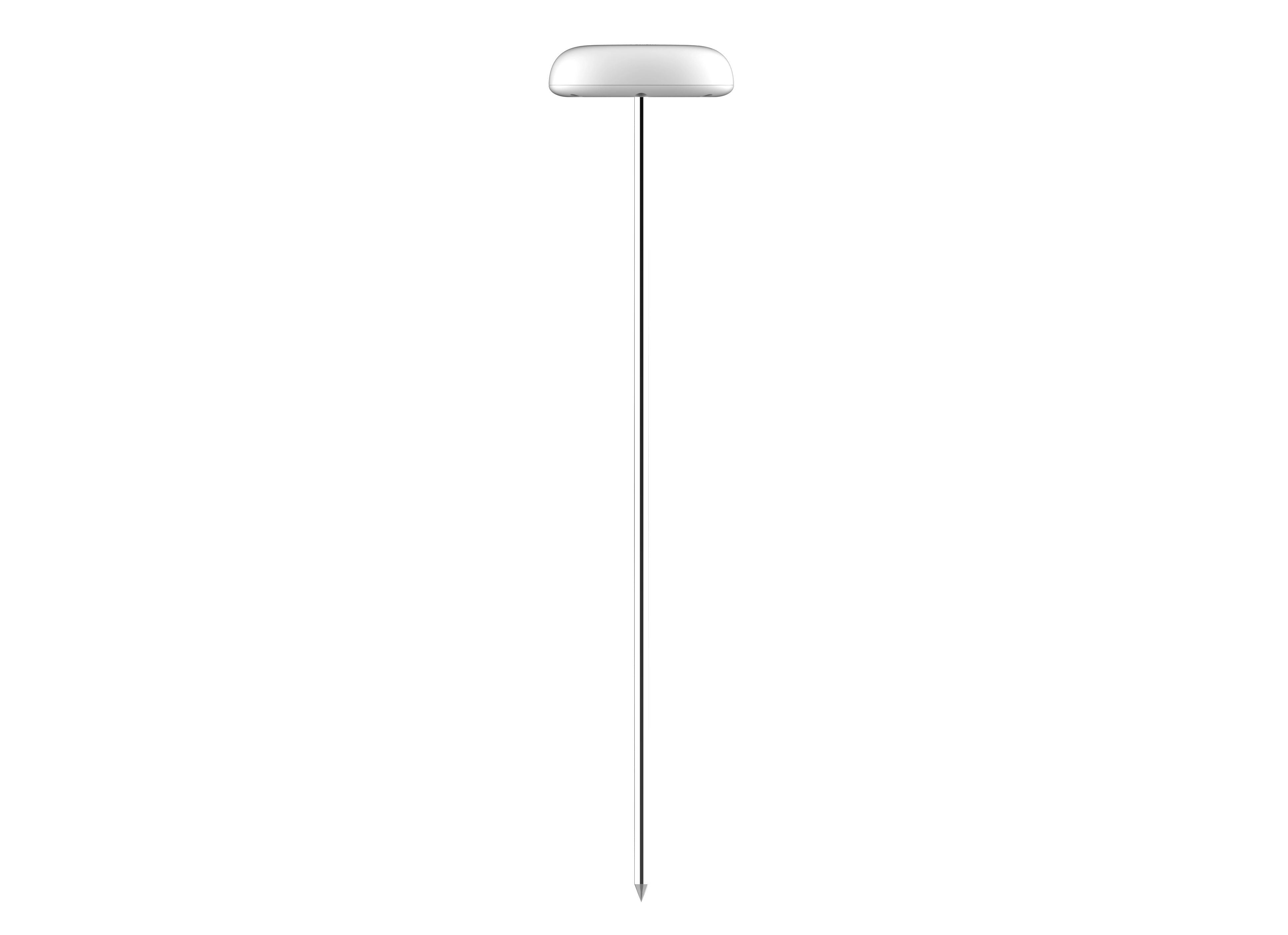

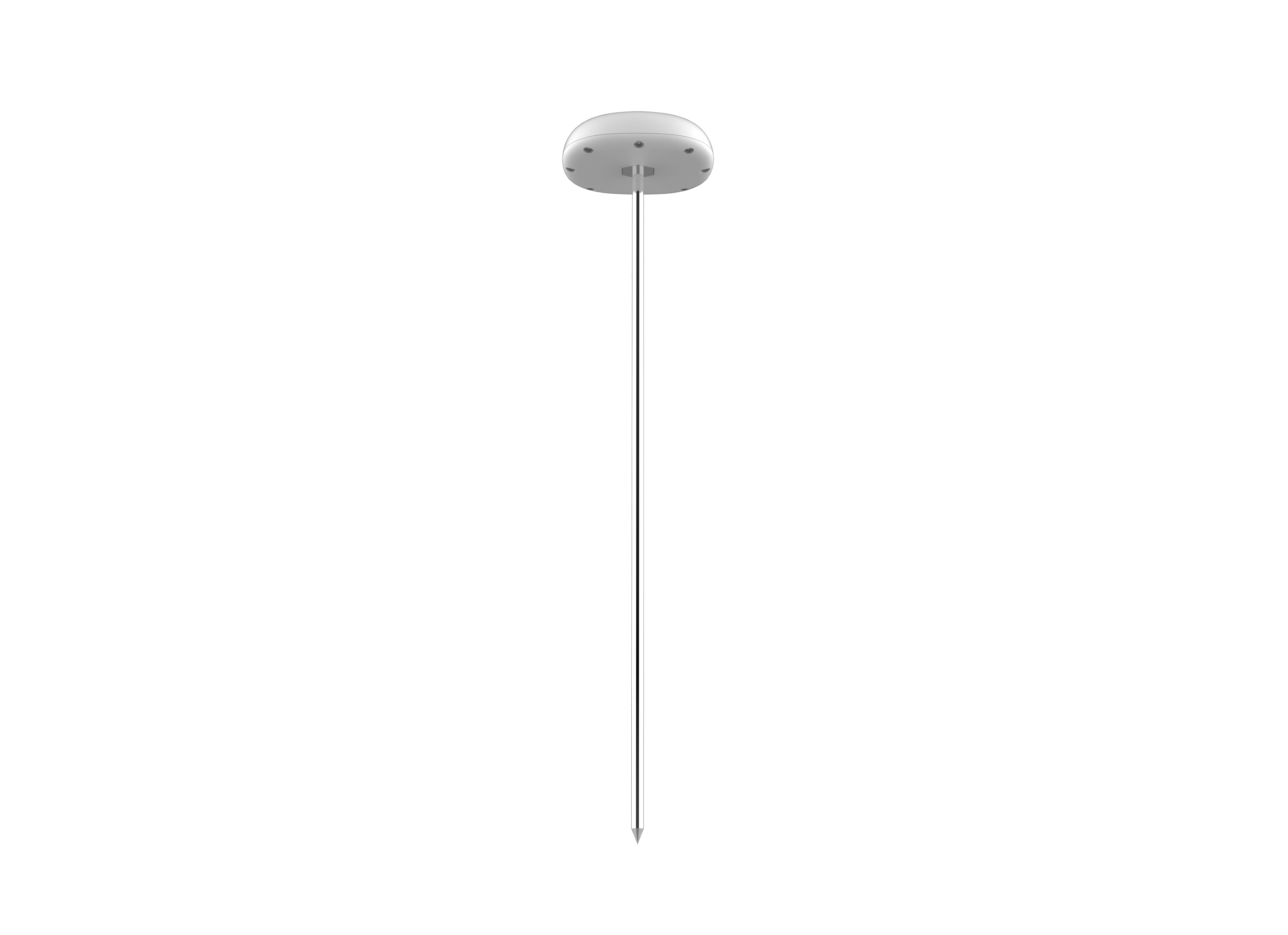

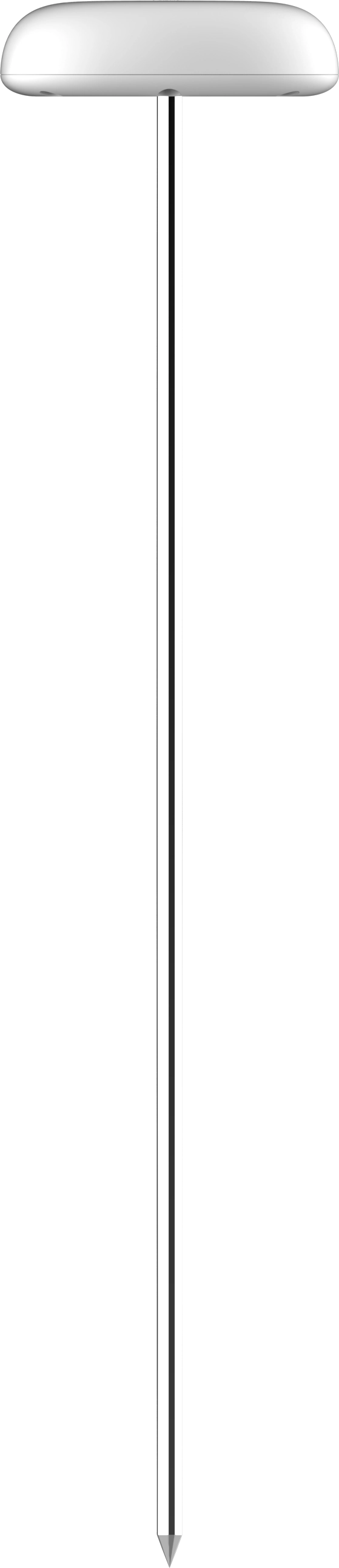

400 mm Probe
The long measurement section reaches inside stored material and monitors temperature where local overheating may develop.
Accuracy ±0,5°C
The stable DS18B20 sensor provides a typical accuracy of ±0,5°C and a resolution of 0,1°C throughout the device application range.
Up to 10 Years of Operation
A replaceable 4000 mAh Li-SOCl₂ battery and energy-efficient LoRaWAN transmission reduce the need for frequent maintenance.
Where Can the TS101 Be Used?
Measurement Parameters
Measurement Deep Inside the Material, Not Only at the Surface
During storage of grain, hay, tobacco, or organic material, elevated temperature may occur locally inside the stack before it becomes noticeable from the outside.
The 400 mm TS101 probe enables measurement directly inside the material, allowing faster detection of unwanted temperature increases.
Designed for Demanding Storage Conditions
316 Stainless Steel
The probe is made of 316 stainless steel, Food Grade, and is resistant to corrosion and phosphine.
IP67
The entire device has an IP67 protection rating, increasing resistance to dust, moisture, and demanding ambient conditions.
IK10
The communication module has an IK10 mechanical impact rating, protecting the electronics against impacts during operation.
Abrupt Temperature Change Alarm
The TS101 supports the Abrupt Temperature Change Alarm function, enabling response to a rapid increase or decrease in temperature in the monitored material.
This function can support earlier detection of abnormal processes occurring inside stored material and allow warehouse personnel to respond more quickly.
Local Storage and Retransmission
1200 Records
The device can locally store up to 1200 historical measurement records.
Retransmission
Data stored during temporary communication loss can be retransmitted after the LoRaWAN connection is restored.
Data Recovery
The Data Retrievability function allows historical data stored directly in the device to be retrieved.
Communication, Power Supply and Design
* The manufacturer declares up to 10 years of operation at SF7, EU868, a 1-hour reporting interval, and a temperature of 25°C. At SF10 and EU868, the declared battery life is approximately 4,8 years. Actual battery life depends on configuration, radio conditions, and operating temperature.
TS101 in a Temperature Monitoring System
Temperature measurements can be automatically transmitted via LoRaWAN to a gateway and then to a central platform. This makes it possible to monitor the temperature of multiple piles or storage points without performing manual measurements.
