Valve adapter set M30 × 1.5 mm (for WT101)
Vendors's code:
Product code: TRA3015
Barcode:
Code 39:
ISBN:
Milesight TRA3015 is a valve adapter set designed for the Milesight WT101 smart radiator thermostat. It allows the thermostat to be installed on popular valves that do not use the standard M30 × 1,5 mm connection.
The set extends WT101 compatibility to Danfoss RA, RAV and RAVL, Giacomini GIA, and M28 × 1,5 mm valves used by manufacturers including Comap, Herz, and TA. The adapters make it possible to use one thermostat model in installations equipped with different types of radiator valves.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
TRA3015 — Greater Milesight WT101 Compatibility with Radiator Valves

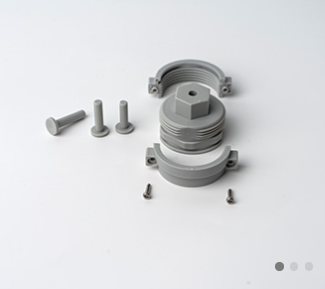

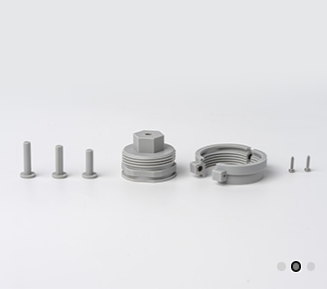

Milesight TRA3015 is a set of mechanical adapters designed for installing the WT101 smart radiator thermostat on different types of valves.
The WT101 is designed as standard for valves with an M30 × 1,5 mm connection. For other popular standards, the TRA3015 allows the thermostat to be adapted to the existing installation without replacing the radiator valve.
One Thermostat — Many Popular Valve Types

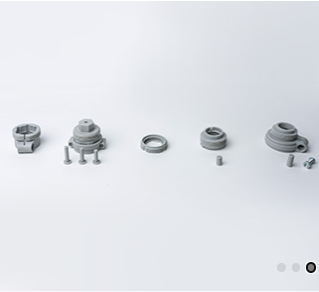

5 Adapter Types
The set includes adapters designed for the most common valves used in European heating installations.
No Valve Replacement
The adapter allows the WT101 to be installed on an existing system without modifying the radiator water installation.
Dedicated Accessory
The TRA3015 is an official Milesight accessory designed to work with the WT101 radiator thermostat.
Retrofit of Existing Heating Installations
Supported Valve Types
Designed for the Milesight WT101 Thermostat
The Milesight WT101 has a standard M30 × 1,5 mm mounting connection that can be used without an adapter with compatible valves.
The TRA3015 is required when the existing valve uses one of the other supported standards, such as Danfoss, Giacomini, or M28 × 1,5 mm.
Thermostat Adaptation Without Modifying the Installation
Adapter Selection
The adapter should be selected according to the type of valve installed on the radiator.
Valve Installation
The appropriate adapter is mounted directly on the existing thermostatic valve.
WT101 Installation
Once the adapter is fitted, the WT101 thermostat can be installed on the valve according to the device instructions.
Adapters for the Most Popular Valves
Key Information
The TRA3015 is a mechanical component and contains no electronics, power supply, or LoRaWAN communication. Its sole purpose is to mechanically adapt the WT101 thermostat to the appropriate radiator valve.
Valve adapter set M30 × 1.5 mm (for WT101)
