Temperature and humidity probe (for TS30X & TS602)
Vendors's code:
Product code: SP13-125-150
Barcode:
Code 39:
ISBN:
Milesight SP13-125-150 is an external probe for simultaneous measurement of temperature and relative humidity, designed to work with Milesight TS602 and TS301 V2 / TS302 V2 sensors. The temperature measurement range is −40…125°C, and the humidity range is 0…100% RH. Temperature accuracy reaches ±0,2°C within 0…65°C, while humidity measurement accuracy is ±2% RH.

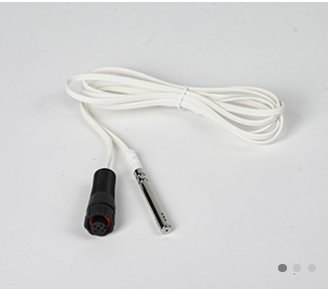

The probe has a PVC cable with a length of 1,5 m and a straight 304 stainless steel measuring tip with dimensions Ø6 × 50 mm and an IP67 protection rating. The SP13-125-150 is suitable for applications including cold rooms, chambers, warehouses, refrigerated transport, and other installations requiring temperature and humidity monitoring at a point remote from the main device.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Milesight SP13-125-150 — External Temperature and Humidity Measurement up to 125°C
Milesight SP13-125-150 is an external probe designed for simultaneous measurement of temperature and relative humidity in environmental and refrigeration monitoring installations.
The sensor offers a wide temperature range of −40…125°C and humidity measurement of 0…100% RH, allowing it to be used both in low-temperature conditions and in applications requiring elevated-temperature monitoring.
The 1,5 m cable allows the measurement point to be positioned inside a chamber, cold room, device, or technological space while the main Milesight device can be installed in a more convenient location.
Two Environmental Parameters in One Probe
−40…125°C
The wide temperature range allows the probe to be used both in refrigeration and in installations with elevated temperatures.
0…100% RH
Simultaneous humidity measurement provides more precise control of storage, transport, and technological process conditions.
1,5 m Cable
The probe can be placed directly in the monitored space, independently of the main device installation location.
Environmental Condition Monitoring
High Accuracy Across a Wide Range
SP13-125-150 measures temperature within the range from −40°C to 125°C.
The manufacturer specifies the highest accuracy for the typical operating range 0…65°C, where it is ±0,2°C.
Outside this range, the accuracy remains suitable for industrial and refrigeration applications.
Relative Humidity Measurement 0…100% RH
In addition to temperature, the probe also measures relative humidity across the full 0…100% RH range.
The typical humidity measurement accuracy is ±2% RH.
This allows one measurement point to monitor the two most important environmental parameters.
304 Stainless Steel Probe
The measuring element is housed in a straight sleeve made of 304 stainless steel.
The tip has a diameter of approximately 6 mm and a length of 50 mm, allowing it to be placed in small spaces, ducts, or measurement openings.
The manufacturer specifies the protection rating of the probe section as IP67.
1,5 m PVC cable
SP13-125-150 uses a 1,5 m PVC cable.
The manufacturer specifies the cable operating temperature range as −40…125°C.
This length makes it easy to separate the installation location of the data logger or main sensor from the actual measurement point.
For TS602 and the Latest TS301 / TS302
The current Milesight accessories list shows the SP13-125-150 as compatible with TS602, TS301 V2 and TS302 V2.
The probe is not compatible with TS30X V1 devices.
For older TS301 or TS302 units, the hardware version should therefore be verified before ordering.
Humidity Measurement as the Key Difference
SP13-125-150 measures both temperature and relative humidity.
The SP12-125-150 model, in contrast, is a DS18B20 probe designed for temperature-only measurement.
SP13 is therefore the right choice where humidity levels must be monitored in addition to temperature in the monitored environment.
Key Parameters of Milesight SP13-125-150
External Milesight Measurement Point
Temperature and humidity probe (for TS30X & TS602)
