DS18B20 probe (for TS30X & TS602)
Vendors's code:
Product code: SP12-125-150
Barcode:
Code 39:
ISBN:
Milesight SP12-125-150 is an external digital temperature probe DS18B20 designed for independent calibration and operation with Milesight TS201, TS602 and TS301 V2 / TS302 V2 devices. The measurement range is −40…125°C, while according to the manufacturer's current datasheet the accuracy is ±0,5°C within −10…85°C and ±2°C outside this range.

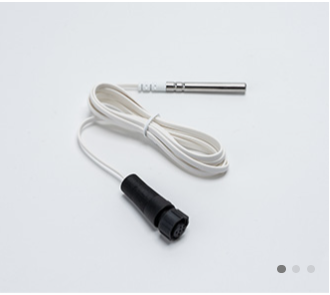

The probe has a PVC cable with a length of 1,5 m and a straight 316 stainless steel measuring tip with dimensions Ø6 × 50 mm and an IP67 protection rating. The SP12-125-150 is designed exclusively for temperature measurement and is suitable for applications including cold rooms, refrigerated transport, warehouses, pharmaceuticals, and industrial process monitoring.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Milesight SP12-125-150 — External Temperature Probe −40…125°C
Milesight SP12-125-150 is a digital DS18B20 temperature probe designed for remote temperature measurement in refrigeration, warehousing, pharmaceutical, and industrial installations.
Wide Measurement Range −40…125°C allows one probe type to be used both in low-temperature environments and in applications with elevated temperatures.
The 1,5 m cable design allows the actual measurement point to be positioned inside a cold room, chamber, device, or technological space while the main Milesight device remains in a convenient installation location.
Simple and Independent Temperature Measurement Point
−40…125°C
The wide temperature range supports both cold rooms and freezers as well as processes with elevated temperatures.
DS18B20
The digital measuring element enables stable transmission of temperature values to a compatible Milesight device.
Independent Calibration
The probe design is intended for applications in which the measuring element can be checked and calibrated separately.
Temperature Monitoring in Demanding Environments
Range from −40°C to 125°C
SP12-125-150 measures temperature only and uses the digital sensor DS18B20.
The current Milesight datasheet specifies an accuracy of ±0,5°C within −10…85°C.
In the extreme ranges −40…−10°C and 85…125°C, the accuracy is ±2°C.
316 Stainless Steel Tip
The measuring element is housed in a straight sleeve made of 316 stainless steel.
The tip has a diameter of approximately 6 mm and a length of 50 mm, allowing it to be easily placed in a small chamber, duct, or measurement point.
The probe has a protection rating of IP67, increasing the measuring element's resistance to moisture and demanding environmental conditions.
1,5 m PVC Cable
SP12-125-150 features a 1,5 m PVC cable.
The cable length allows the installation location of the data-logging device to be separated from the actual measurement point.
The manufacturer's documentation specifies a cable temperature range of −40…125°C.
Probe Designed for Independent Calibration
Milesight describes the SP12-125-150 as Independent Calibration DS18B20 Probe.
The separate probe allows the measuring element to be checked and serviced independently of the data-logging device, which is particularly useful in installations requiring periodic temperature verification.
The solution also allows the measurement point itself to be replaced without replacing the entire Milesight device.
For TS201, TS602 and TS30X V2 Devices
The current Milesight accessories list shows the SP12-125-150 as compatible with TS201, TS602, TS301 V2 and TS302 V2.
The manufacturer clearly states that the accessory is not compatible with TS30X V1 devices.
For TS301 or TS302, the device generation should therefore be verified before ordering.
Temperature Measurement Instead of Temperature and Humidity
SP12-125-150 is a temperature-only probe.
The SP13-125-150 model measures temperature and relative humidity simultaneously.
SP12 is therefore the right choice for applications where humidity measurement is not required and a simple external DS18B20 temperature measurement point is the priority.
Key Parameters of Milesight SP12-125-150
External Milesight Temperature Measurement Point
DS18B20 probe (for TS30X & TS602)
