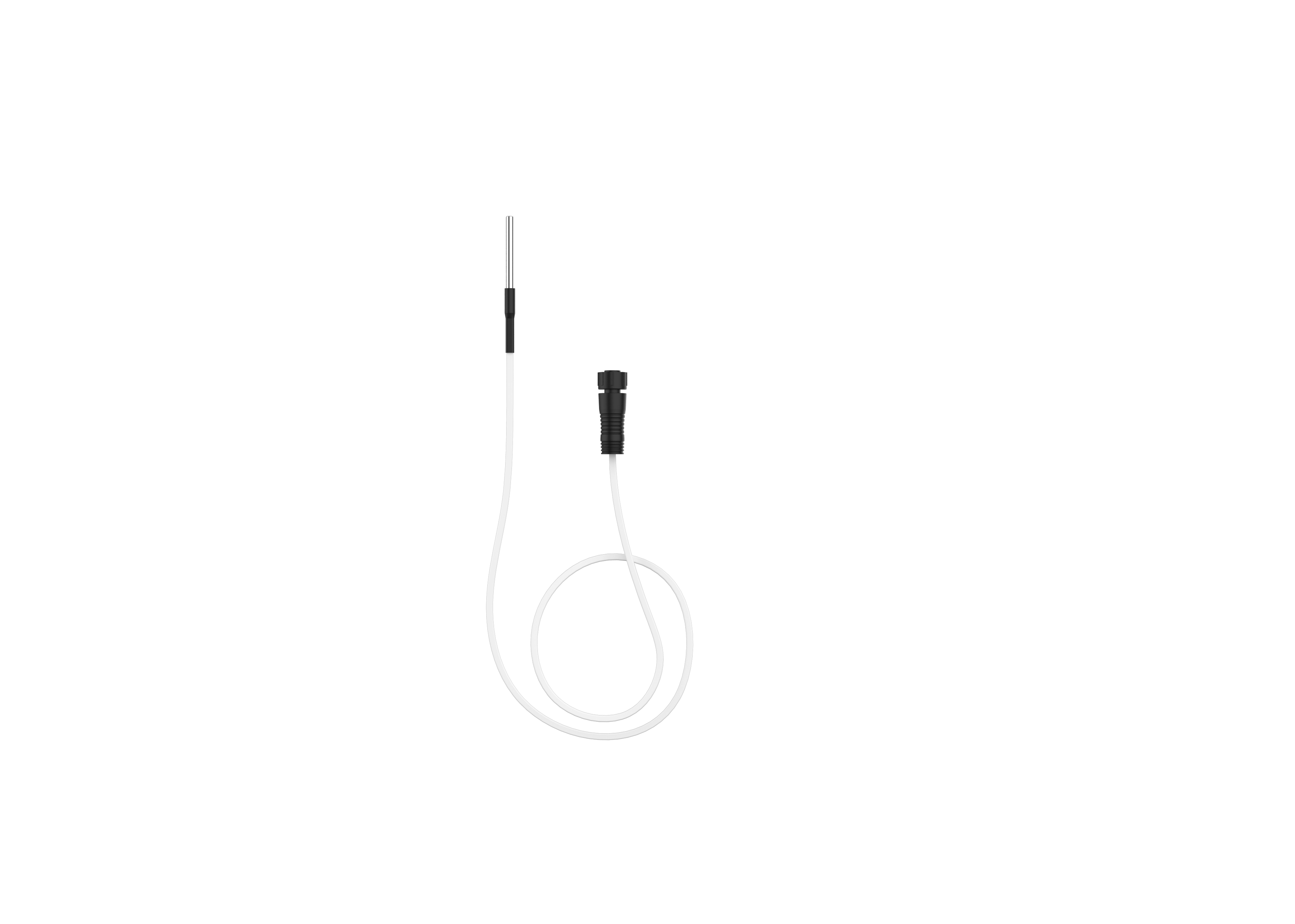

PT100 probe (for TS30X & TS602) – Class B
Vendors's code:
Product code: SP11 PN: B05-125-200
Barcode:
Code 39:
ISBN:
Milesight SP11 B05-125-200 is a standard temperature probe Class B PT100 designed to work with Milesight TS301, TS302 and TS602 devices. The measurement range is −40…125°C, with a typical accuracy of ±0,5°C within −40…40°C and ±1°C for temperatures from 40…125°C. The probe is suitable for monitoring cold rooms, warehouses, pharmaceutical and food applications, and other installations requiring an external temperature measurement point.
The measuring tip is made of 304 stainless steel measures Ø4 × 50 mm and has an IP67 protection rating. SP11 B05-125-200 features a 2 m PVC cable and can be used for contact measurement or together with the optional Milesight TB3984 buffer bottle, which stabilises measurements in refrigeration and cold-chain applications.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Milesight SP11 B05-125-200 — PT100 Class B, −40…125°C
Milesight SP11 B05-125-200 is a standard external Class B PT100 temperature probe designed for precise monitoring of conditions in cold rooms, warehouses, transport, pharmaceutical applications, and other industrial installations.
Measurement Range −40…125°C covers both typical refrigeration and freezer applications as well as monitoring positive temperatures in technological processes.
The probe has a straight 304 stainless steel tip and a 2 m PVC cable, allowing the measurement point to be positioned within the monitored space independently of the Milesight device installation location.
Versatile Probe for Temperature Monitoring
−40…125°C
The range allows the probe to be used in cold rooms, freezers, warehouses, and many industrial processes.
Class B PT100
The platinum resistance element provides stable temperature measurement across a wide operating range.
2 m Cable
The long cable makes it easy to separate the measurement point from the installation location of the data-logging device.
Temperature and Cold-Chain Monitoring
Class B Platinum Resistance Sensor
The SP11 B05-125-200 uses Class B PT100 sensing element.
The PT100 measures temperature through the change in resistance of the platinum element as temperature changes.
This is the standard variant of the SP11 family, designed for typical refrigeration, warehousing, and industrial applications.
Temperature from −40°C to 125°C
Milesight specifies the probe measurement range as −40…125°C.
This range covers typical conditions found in refrigeration, food and medicine storage, and many industrial automation applications.
Up to ±0,5°C within −40…40°C
Within the range from −40°C to 40°C the manufacturer specifies the typical probe accuracy as ±0,5°C.
For temperatures from 40°C to 125°C, the typical accuracy is ±1°C.
These characteristics make the B05 variant particularly well suited to refrigeration and warehousing applications, where most measurements are taken in the lower temperature range.
304 stainless steel, Ø4 × 50 mm
The PT100 element is housed in a straight sleeve made of 304 stainless steel.
The measuring tip has a diameter of 4 mm and a length of 50 mm.
The manufacturer specifies the probe protection rating as IP67, allowing it to be used in demanding refrigeration and industrial environments.
2 m PVC cable
The SP11 B05-125-200 features a 2-metre PVC cable.
The manufacturer specifies the cable operating temperature range from −30 to 105°C.
The measurement range of the metal probe itself, −40…125°C, should be distinguished from the permissible operating conditions of the PVC cable.
Contact Measurement
The basic installation method for the SP11 B05-125-200 is Contact Installation, meaning the probe tip is placed directly at the monitored location.
This allows temperature to be measured inside a chamber, cold room, device, or at a selected installation component.
Optional TB3984 Buffer Bottle
Milesight provides the option of installing the SP11 B05-125-200 in the optional TB3984 Glass Bead Thermal Buffer Bottle.
The thermal buffer reduces the effect of short-term air temperature changes, for example when a cold-room door is opened, providing a better representation of the thermal conditions of stored products.
The TB3984 is a separate accessory — the manufacturer clearly states that the probe is not included with the bottle and is sold separately.
For Milesight TS301, TS302 and TS602
Current Milesight documentation lists the SP11 B05-125-200 as compatible with TS301, TS302 and TS602.
The probe measures temperature, while the main device handles reading, data logging, and further transmission.
Standard SP11 Family Variant
SP11 B05-125-200 is the standard Class B PT100 variant designed primarily for typical temperature and cold-chain applications.
AF10-125-150 is the Class A food-grade version, A03-050-150 supports temperatures down to −200°C, while A05-500-150 is the industrial high-temperature variant rated up to 500°C.
Key Parameters of Milesight SP11 B05-125-200
Temperature Measurement in the Milesight System
