Basic panel main module GP-Pro EX

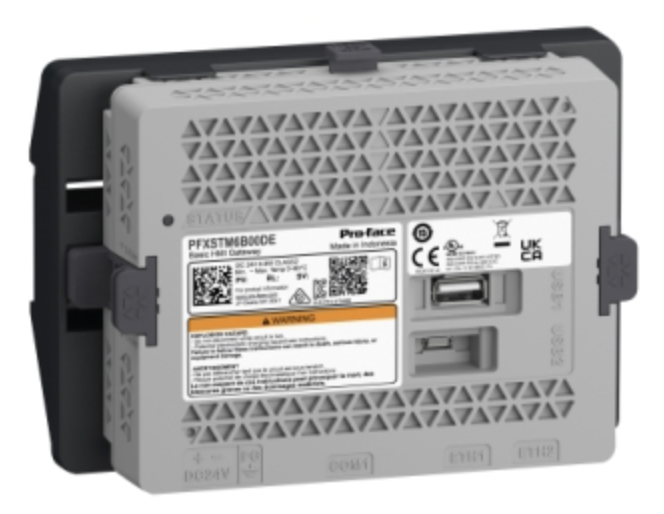

Pro-face classifies PFXSTM6B00DE as Multi-Converter for STM6000 Series and Basic HMI Gateway.

The module can perform communication functions and run a GP-Pro EX project without a permanent Display Module, allowing it to be installed directly in a control cabinet.

This approach makes it possible to use HMI platform functions for communication and data acquisition even in applications where local visualisation is not required.

Litera E at the end of the PFXSTM6B00DE number indicates a variant intended to work with GP-Pro EX.

The current Pro-face compatibility list indicates support for the PFXSTM6B00DE Multi-Converter from GP-Pro EX Ver. 4.09.350.

This allows the familiar Pro-face engineering environment to be used also in applications without a local operator panel.

At the heart of the device is an ARM Cortex-A8 operating at 800 MHz.

PFXSTM6B00DE offers 64 MB application memory and 320 kB of backup memory.

In the Multi-Converter configuration, the manufacturer provides support for up to two communication drivers simultaneously.

PFXSTM6B00DE features 2 RJ45 Ethernet interfaces supporting the 10/100BASE-T standard.

The two ports make it convenient to separate connections for automation devices and higher-level infrastructure or create other topologies according to project requirements.

LAN2 configuration is performed from the device offline mode. An STM6000 Display Module can be connected for this purpose, or remote access can be obtained using Pro-face Remote HMI.

The device features 1 port COM1 terminated with a 9-pin SUB-D connector.

The interface supports communication RS-232C, RS-422 and RS-485.

The available transmission speed range is 2400 to 115200 bit/s, enabling integration with a wide range of controllers and industrial devices.

The PFXSTM6B00DE is equipped with USB 2.0 Type-A and USB 2.0 micro-B.

The USB interfaces can be used for engineering, service functions, and compatible peripherals according to GP-Pro EX capabilities.

Unlike the PFXSTM6B00DIOT Edge Box variant, the model PFXSTM6B00DE can work with an STM6000 Display Module.

The manufacturer lists compatible modules PFXSTM62TP — 4,3″ Wide and PFXSTM64TP — 7″ Wide.

The display can be used during configuration, diagnostics, and project verification, while a permanent screen is not required for normal Multi-Converter operation.

In the STM-6B00 configuration, the module is designed for installation in a control cabinet using a Rear Module mounting adapter.

The adapter enables the device to be mounted on a standard DIN rail, allowing the gateway to be installed next to PLCs, switches, and other automation components.

The manufacturer documentation states that the mounting adapter, DC power connector, and USB Type-A cable clamp are supplied with the device.

The PFXSTM6B00DE is powered by a rated voltage of 24 V DC.

The permissible input voltage range is 19,2–28,8 V DC.

Maximum power consumption is 6,8 W, and with no external devices powered, the manufacturer specifies approximately 3,5 W.

The current product data sheet lists certifications including CE, UKCA, cULus, RCM, KC, EAC, cULus Class I Division 2, ABS, RINA, BV and DNV.

The device is designed for operation in industrial environments in accordance with applicable requirements for mechanical resistance and electromagnetic compatibility.

The STM-6B00 Series is available in several variants that differ primarily in their software environment.

PFXSTM6B00DE is the version for GP-Pro EX, PFXSTM6B00D uses the BLUE environment, while PFXSTM6B00DIOT is the Edge Box HMI variant for BLUE Open Studio.

PFXSTM6B00DE and PFXSTM6B00DIOT should not be treated as interchangeable — the IOT model uses a different software platform and is designed to operate without direct connection to a Display Module.
