Parkdroid LoRaWAN Submersible
Vendors's code:
Product code: C59E-7593F
Barcode:
Code 39:
ISBN:

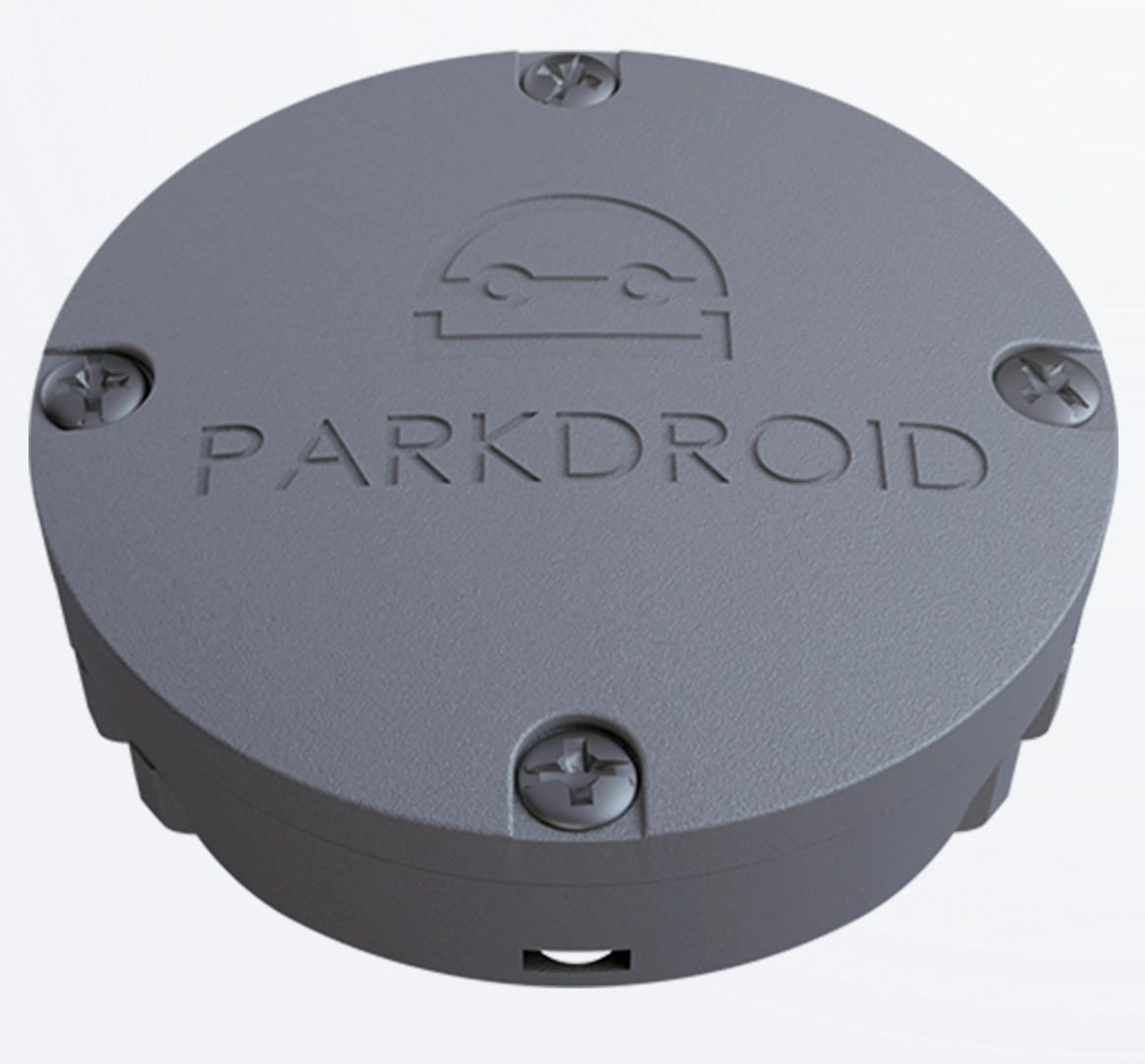

Parkdroid C59E-7593F is a recessed parking-space occupancy sensor with LoRaWAN. The sensor uses geomagnetic detection to recognise vehicle presence and transmits parking-space status information to the LoRaWAN infrastructure.
Compact Design Ø86 × 31 mm, resistance rating IP67 and IK10 and an operating range of −35…+80°C enable the device to be used in outdoor car parks and urban spaces. Four 9600 mAh Li-SOCl₂ batteries provide many years of operation, while recessed installation allows the sensor to be discreetly integrated into the surface.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Parkdroid Submersible — Parking-Space Occupancy Monitoring
Parkdroid C59E-7593F is a smart parking-space occupancy sensor designed for recessed installation in the surface.
The device uses geomagnetic detection to recognise vehicle presence and LoRaWAN communication to transmit parking-space status information. The Submersible variant allows the sensor to be discreetly integrated into the car park surface.
Discreet Installation, LoRaWAN and Long-Term Operation
Recessed Mounting
The sensor is installed in a prepared hole in the surface, allowing it to remain well integrated with the parking space.
LoRaWAN
Energy-efficient communication enables parking-space status to be transmitted over long distances to a LoRaWAN gateway.
7+ years of operation
Four Li-SOCl₂ batteries provide many years of autonomous operation without wired power.
Where Can Parkdroid Submersible Be Used?
Geomagnetic Detection of Available and Occupied Spaces
The sensor analyses magnetic field changes caused by a vehicle positioned above the parking space.
A parking-space status change can be automatically transmitted to the parking system and used for visualisation, occupancy analysis, or driver information.
Energy-Efficient Long-Range Transmission
* Actual range depends on gateway location, surrounding structures, terrain, interference, and LoRaWAN network parameters.
Operation with a Local or Public LoRaWAN Network
Unlike the NB-IoT variants, the C59E-7593F communicates via the LoRaWAN network and requires access to suitable LoRaWAN infrastructure.
This can be a dedicated gateway installed in the car park or existing LoRaWAN network infrastructure, depending on the architecture of a specific deployment.
Sensor Integrated into the Car Park Surface
The Submersible variant is designed to be installed in a prepared hole in the parking-space surface.
The solution is more discreet than the Surface variant and reduces the height of the element protruding above the surface.
* Approximate value for the Parkdroid Submersible platform. Actual time depends on the surface type and installation method.
IP67, IK10 and Operation from −35 to +80°C
IP67
The sealed enclosure is designed for operation in environments exposed to water, snow, dust, and contamination.
IK10
High mechanical resistance enables operation directly within the parking area.
−35…+80°C
The wide temperature range allows the sensor to be used year-round in demanding outdoor conditions.
Rugged Enclosure for Parking Applications
Four Li-SOCl₂ Batteries and 7+ Years of Operation
* Parkdroid specifies more than 7 years of operation with approximately 30 status changes per day. Actual operating time depends on temperature, the number of events, and radio communication quality.
Wireless Device Configuration
The current Parkdroid platform enables wireless sensor activation and configuration using the manufacturer's application.
This makes it possible to prepare a larger number of devices for operation without a wired service interface.
Data for Applications, Information Boards and Management Systems
Sensor information can be forwarded to parking platforms, mobile applications, parking information boards, and Smart City systems.
This enables current parking-space availability to be displayed, car park utilisation to be analysed, and the time drivers need to find an available space to be reduced.
Key Device Parameters
Parkdroid in a LoRaWAN Smart Parking System
Occupancy information for each parking space can be transmitted via the LoRaWAN network to a central parking system.
Parkdroid LoRaWAN Submersible
