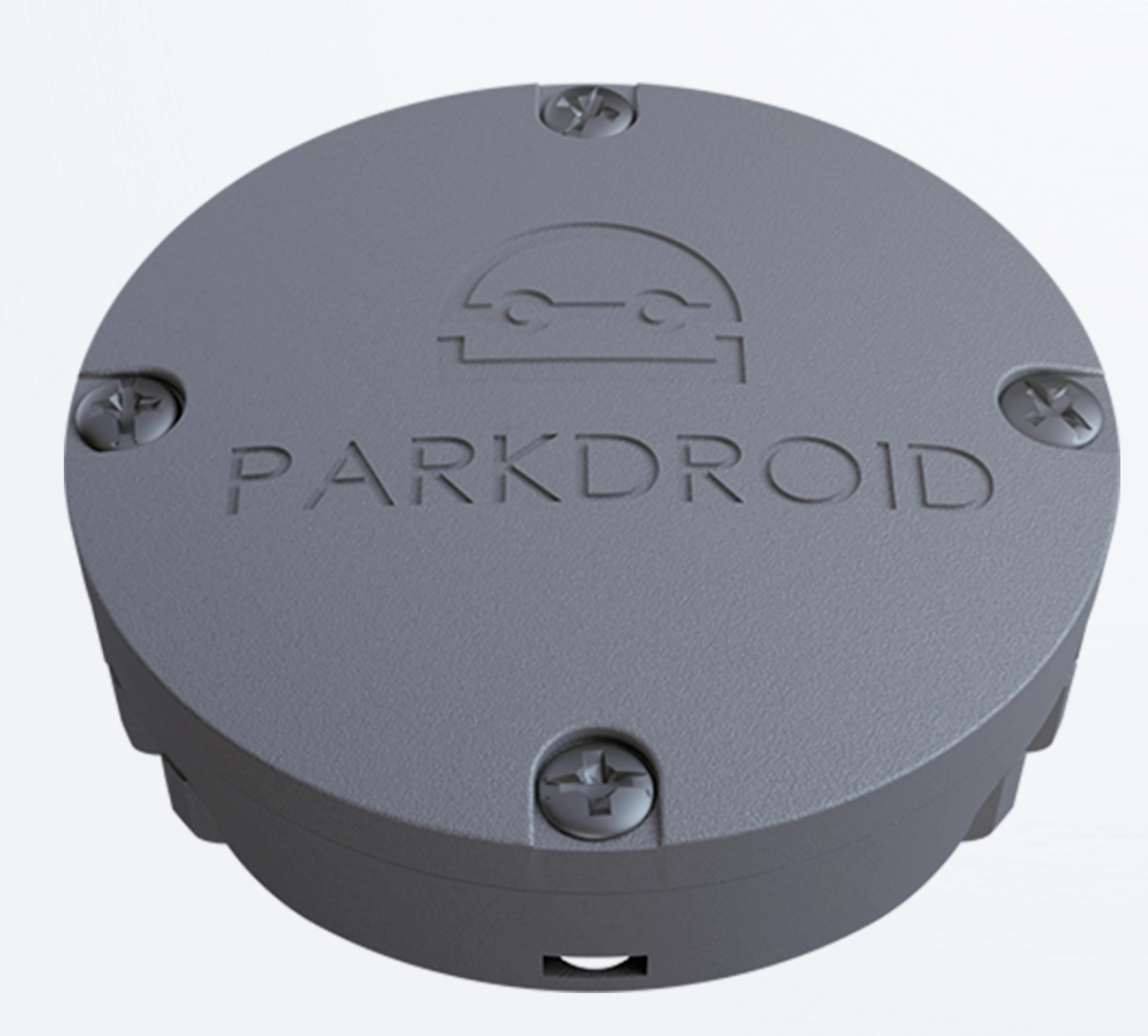

Parkdroid BB19-158AF is a smart recessed parking-space occupancy sensor with NB-IoT. The sensor uses geomagnetic detection to recognise vehicle presence and transmits parking-space status directly through the mobile operator network.
Compact Design Ø86 × 31 mm, resistance rating IP67 and IK10 and an operating range of −35…+80°C enable the device to be used in outdoor car parks and urban spaces. Four Li-SOCl₂ batteries provide many years of operation, while Bluetooth configuration using the Parkdroid application simplifies commissioning of large Smart Parking installations.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Opis
Produkty powiązane
Parkdroid — Automatic Parking-Space Occupancy Detection
Parkdroid BB19-158AF is a smart parking-space occupancy sensor designed for recessed installation in the surface.
The device uses a geomagnetic sensor to detect vehicle presence, while parking-space status-change data is transmitted via the NB-IoT network. By using mobile operator infrastructure, the system does not require a local LoRaWAN gateway.
Discreet Installation, Direct Communication and Long-Term Operation
Recessed Mounting
The sensor is installed in the surface, allowing it to remain discreetly integrated with the parking space.
NB-IoT
Data is transmitted through public mobile operator infrastructure without the need to install a local gateway.
7+ years of operation
The manufacturer declares many years of battery operation, even with frequent parking-space status changes.
Where Can Parkdroid Be Used?
Geomagnetic Occupancy Detection
Parkdroid analyses magnetic field changes caused by a vehicle positioned above the sensor installation location.
Occupancy-change information can be automatically transmitted to a parking system, mobile application, information board, or Smart City platform.
Without Local Radio Infrastructure
The BB19-158AF variant uses NB-IoT communication based on the mobile operator's cellular network infrastructure.
This means the sensor does not require a local LoRaWAN gateway. Data is transmitted through the operator network to the server or platform responsible for the parking system.
Sensor Integrated into the Parking-Space Surface
The Submersible version is designed for installation in a prepared hole in the parking-space surface.
After installation, the compact sensor remains integrated with the surface, making it less exposed to accidental damage and preventing it from becoming a significant obstacle to passing vehicles.
* Approximate value provided by the manufacturer for the Submersible version. Actual time depends on the surface type and installation method.
IP67, IK10 and Operation from −35 to +80°C
IP67
The sealed design allows the sensor to be used in environments exposed to water, rain, snow, and contamination.
IK10
High mechanical resistance supports use of the device directly within the parking area.
−35…+80°C
The wide temperature range enables operation in demanding weather conditions throughout the year.
Rugged Enclosure for Parking Applications
Many Years of Operation Without Wired Power
The sensor uses a set of four 3,6 V Li-SOCl₂ AA lithium batteries with a declared total capacity of 9600 mAh.
Parkdroid declares more than 7 years of operation with approximately 30 parking-space status changes per day. Actual battery life depends on temperature, event frequency, and network signal quality.
* The manufacturer specifies more than 7 years with approximately 30 status changes per day. Battery life may vary depending on environmental conditions, the number of events, and communication quality.
Bluetooth Configuration
Sensor activation and configuration are performed wirelessly via Bluetooth using the Parkdroid application.
This makes it easier to deploy a larger number of sensors without opening the device during basic configuration.
Occupancy Data Available to Applications and Municipal Systems
Parkdroid data can be integrated with parking platforms, Smart City systems, driver applications, variable-message signs, and parking management systems.
This makes it possible to display the number of available spaces, analyse car park utilisation, identify long stays, and help drivers find available spaces more quickly.
Key Device Parameters
Parkdroid in a Smart Parking System
The NB-IoT variant communicates directly through mobile operator infrastructure, so a local LoRaWAN gateway is not required in this configuration.
Parkdroid NB-IoT Submersible
