Phoenix Contact

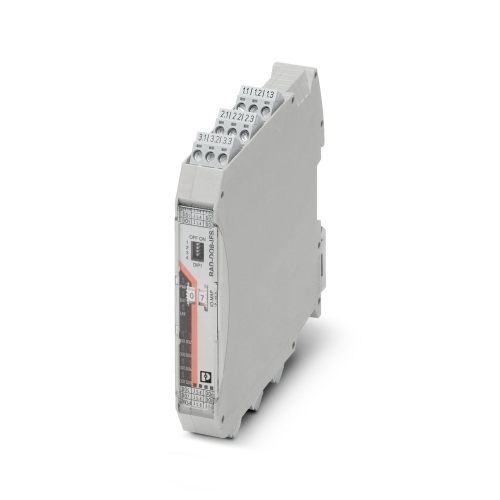

RAD-DO8-IFS - I/O expansion module

Radioline I/O extension module, 8 digital transistor outputs (30.5 V DC / 200 mA)

Go to full description
Availability:
In Stock
Shipping time: 31 dni
USD EUR with VAT without VAT
Price $578.66
incl. 23% VAT

Shipping costs are not included in the price.

szt.

Opis

Produkty powiązane

Industrial Wireless: from IWLAN through Wireless I/O to LoRaWAN

Industrial wireless solutions provide secure and reliable connections tailored to different requirements. We offer technologies such as IWLAN and Bluetooth for real-time communication, NearFi for short distances, and LoRaWAN and Trusted Wireless for long routes. Our range includes access points, client devices, and suitable antennas and cables for a comprehensive wireless network.
Industrial Wireless

Product properties:

Product type:

Expansion module

MTTF:

230 Years (Standard SN 29500, temperature 40°C, operating cycle 100%)
600 Years (Standard SN 29500, temperature 40°C, operating cycle 34.25%)
1594 Years (Standard SN 29500, temperature 25°C, operating cycle 21%)

Electrical parameters:

Rated voltage isolation:

60 V (according to EN/IEC 60079-7)

Galvanic isolation:

300 V (rated insulation voltage to adjacent devices, basic insulation according to EN/IEC 61010)
50 V (rated insulation voltage between channel groups 1...4 and 5...8 / TBUS supply, reinforced insulation according to EN 61010)

Digital I/O measurement voltage:

1.5 kV AC (50 Hz, 1 min.)

Supply voltage range:

from 19.2 V DC to 30.5 V DC

Maximum current consumption:

≤ 22 mA (@24 VDC, @ 25°C)

Maximum power dissipation under rated conditions:

0.528 W

Output data – digital:

Output designation:

Active transistor output

Number of outputs:

8

Contact type:

Transistor

Supply voltage range:
12 V DC to 30.5 V DC (for digital outputs)

Maximum switching voltage:

30.5 V DC

Maximum switching current:

0.2 A (on channel)

Off-state output current:

≤ 300 µA

Off-state output voltage:
≤ 2 V

Max. frequency connection:

10 Hz

Output characteristics (set via DIP switch):

Hold / Reset

Connection data:

Tightening torque:

5 lbf-in.... 7 lbf-in.
0.5 Nm... 0.6 Nm

Connection type:

Screw connection

Length removable isolation:

7 mmr

Minimum rigid conductor cross-section:
0.2 mm²

Maximum rigid conductor cross-section:

2.5 mm²

Minimum flexible conductor cross-section:

0.2 mm²

Maximum flexible conductor cross-section:

2.5 mm²

Minimum AWG conductor size:
24

Maximum AWG conductor size:
14

Dimensions

Drawing

I/O expansion module 2902811

Width:
17.5 mm

Height:
113 mm

Depth:
114.5 mm

Mounting method:
DIN rail: 35 mm

Environmental conditions

Degree of protection
IP20

Ambient temperature
from -40 to 70 °C

Benefits

  • Straight replacement module during operation (Hot Swap)
  • Wide range temperatures operation from -40°C to +70°C
  • Galvanic isolation between channels
  • Intuitive commissioning using the knurled rotary switch
