Phoenix Contact

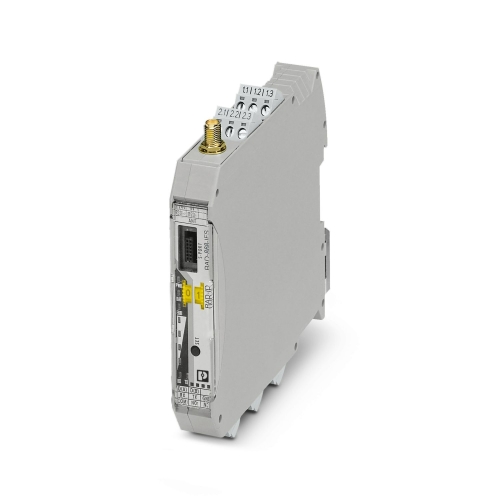

RAD-868-IFS - Wireless module

Radioline — 868 MHz wireless transceiver with RS-232/485 connection, expandable with I/O modules, RSMA (female) antenna connection, point-to-point, star and mesh networks with up to 99 stations, range up to 20 km, for use in Europe

Go to full description
Availability:
In Stock
Shipping time: 31 dni
USD EUR with VAT without VAT
Price $1,347.83
incl. 23% VAT

Shipping costs are not included in the price.

szt.

Opis

Produkty powiązane

Industrial Wireless: from IWLAN through Wireless I/O to LoRaWAN

Industrial wireless solutions provide secure and reliable connections tailored to different requirements. We offer technologies such as IWLAN and Bluetooth for real-time communication, NearFi for short distances, and LoRaWAN and Trusted Wireless for long routes. Our range includes access points, client devices, and suitable antennas and cables for a comprehensive wireless network.
Industrial Wireless

Product properties:

Product type:

Wireless module

Application:

RS-485
RS-232
I/O

Operating mode:

Dual PLC / Modbus RTU mode (activation and configuration using PSI-CONF software)
PLC/Modbus RTU mode (activation and configuration using PSI-CONF software)
Serial data (activation and configuration using PSI-CONF software)
I/O data (factory settings, configuration using the knurled rotary switch)

MTTF:

131 Years (Standard SN 29500, temperature 40°C, operating cycle 100%)
331 Years (Standard SN 29500, temperature 40°C, operating cycle 34.25%)
729 Years (Standard SN 29500, temperature 25°C, operating cycle 21%)

Electrical parameters:

Rated voltage isolation:

60 V (according to EN/IEC 60079-7)

Maximum power dissipation under rated conditions:

1.56 W

Transient overvoltage protection:

Yes

Limits system - 1

Designation:
radio module

Number of supported participants:
≤ 99 (per wireless network)

Possible number of extension modules:
≤ 32 (on radio module)

Limits system - 2

Designation:

Radio

Number of supported participants:

≤ 99 (I/O extension modules per wireless network, serial interfaces disabled)
0 (I/O extension modules cannot be used)
≤ 99 (I/O extension modules per wireless network, access to extension modules using the Modbus RTU transmission protocol)

Power supply

Supply voltage:
24 V DC

Supply voltage range:
from 19.2 V DC to 30.5 V DC

Maximum current consumption:
≤ 65 mA (at 24 VDC, at 25 °C, Stand-alone)
≤ 6 A (at 24 V DC, with full load on the DIN rail connector)

Output data – digital

Output designation:
RF-Link relay output

Contact type:
Changeover contact

Contact material:
Gold-plated PdRu

Maximum switching voltage:
30 V AC
60 V DC

Maximum switching current:
500 mA

Electrical Service life:
5 × 10^5 switching cycles at 0.5 A and 30 V DC

Output data – analog

Output designation:
RSSI voltage output

Output voltage signal:
from 0 V to 3 V

Wireless transmission

Range:
± 20 km (the range may increase or decrease significantly and depends on the environment, antenna and product used.)

Serial: RS-232

Data throughput:
300 Bit/s / 600 Bit/s / 1.2 kb/s / 2.4 kb/s / 4.8 kb/s / 9.6 kb/s / 19.2 kb/s / 38.4 kb/s / 57.6 kb/s / 93.75 kb/s / 115.2 kb/s

Connection type:
Screw connection, pluggable COMBICON

Connection technology:
3-wire

Transmission range:
≤ 15 m

Serial: RS-485

Data throughput:
300 Bit/s / 600 Bit/s / 1.2 kb/s / 2.4 kb/s / 4.8 kb/s / 9.6 kb/s / 19.2 kb/s / 38.4 kb/s / 57.6 kb/s / 93.75 kb/s / 115.2 kb/s

Connection type:
Screw connection, pluggable COMBICON

Connection technology:
2-wire

Transmission range:
≤ 1200 m

Terminator:
390 Ω (switchable via DIP switch)
150 Ω (switchable via DIP switch)

Wireless

Interface description:
Trusted Wireless

Frequency:
868 MHz

Frequency range:
869.4 MHz to 869.65 MHz

Channel spacing:
30 kHz (depending on the network structure and data transmission rate)

Number of channel groups:
14

Minimum transmit power:
16 dBm

Maximum transmit power:
≤ 27 dBm (500 mW, setting factory, adjustable)

Transmission speed:
120 kb/s (adjustable)
60 kb/s (adjustable)
19.2 kb/s (adjustable)
9.6 kb/s (Setting factory, adjustable)
1.2 kb/s (adjustable)

Minimum receiver sensitivity:
-103 dBm (120 kb/s)
-104 dBm (60 kb/s)
-111 dBm (19.2 kB/s)
-114 dBm (9.6 kB/s)
-122 dBm (1.2 kb/s)

Antenna connection type:
RSMA (female)

Security:
128-bit data encoding

Dimensions

Drawing:
Wireless module 2904909

Width:
17.5 mm

Height:
116 mm

Depth:
114.5 mm

Mounting method:
DIN rail mounting

Environmental conditions

Degree of protection
IP20

Ambient temperature
from -40 to 70 °C

Benefits

  • Band 868 MHz without licenses
  • Large range thanks to adjustable transmission
  • Fast startup without programming
  • High reliability with Trusted Wireless 2.0 (AES, step frequency)
  • Expansion with up to 32 I/O modules
