Phoenix Contact

RAD-ISM-2400-ANT-OMNI-6-0 - Antenna

Omnidirectional antenna for wall or pole mounting, 2.4 GHz, gain: 6 dBi, degree of protection: IP67, resistant to seawater, shock and vibration, connection: N (female), mounting bracket and mast clamps included, ATEX and IECEx approval

Go to full description
Availability:
In Stock
Shipping time: 31 dni
USD EUR with VAT without VAT
Price $457.84
incl. 23% VAT

Shipping costs are not included in the price.

szt.

Opis

Produkty powiązane

Industrial Wireless: from IWLAN through Wireless I/O to LoRaWAN

Industrial wireless solutions provide secure and reliable connections tailored to different requirements. We offer technologies such as IWLAN and Bluetooth for real-time communication, NearFi for short distances, and LoRaWAN and Trusted Wireless for long routes. Our range includes access points, client devices, and suitable antennas and cables for a comprehensive wireless network.
Industrial Wireless

Product properties:

Product type:

Antenna

Scope of delivery:

Mounting bracket and mast clamps included

Radiation pattern:

Omnidirectional

Gain:

6 dBi

Vertical opening angle:

30 °

Horizontal opening angle:

360 °

Polarization:

linear vertical

Electrical parameters

Frequency band:
2.4 GHz

Frequency range:
2.4 GHz to 2.5 GHz

Impedance:
50 Ω

Maximum power:
25.00 W

Connection data

Connection type:

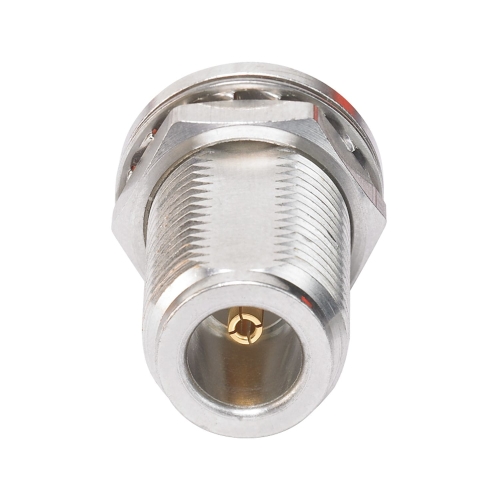

N (female)

Outer diameter:
from 25 mm to 100 mm (Mast)

Safety specifications

Input voltage Ui:
30 V

Input current Ii:
600 mA

Input power Pi:
≤ 1 W (30 dB)

Maximum internal inductance Li:
value negligible

Capacitance Ci:
value negligible

Dimensions

Height:
250 mm

Diameter:
22 mm

Mounting

Mounting method:
Cabinet control
Wall mounting

Material data

Material:
Glass-fiber-reinforced plastic
V2A

Flammability rating according to UL 94:
HB

Cable/Cable

Connection cable:
not

Remaining immunity:
resistant to operation water marine

Environmental conditions

Degree of protection:
IP67

Ambient temperature:
from -40 °C to 75 °C

Benefits

  • Ideal for mobile applications at 2.4 GHz, 5 GHz and 6 GHz.
  • Resistant to cleaning agents.
  • Impact-resistant enclosure (IK08).
  • Resistant to shock and vibration.
